10.1 inch touch screen monitors with Waterproof

Short Description:

CJTouch capacitive sensor Touch screen monitor allows wet finger operation, provides high quality touch experience even in harsh environment.

· Anti-glare /Anti Reflection /tempered cover glass optional.

· FCC, CE, RoHS, certificates.

· best touch screen monitor with Professional Customization

· Professional structural design

· Industrial-grade Touch monitor

· Super Sensitive Touch screen monitor


Product Detail

Product Tags

Specification:

General
Model COT101-CFK03
Series Water-proof and Flat screen
Monitor Dimensions Width: 259.8mm Height: 182.5mm Depth: 40mm
LCD Type 10.1” Active matrix TFT-LCD
Video Input VGA HDMI and DVI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm   2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm) 216.96 (H) x 135.6(V)
Resolution 1280×800 @60Hz
Dot Pitch(mm) 0.1695(H) x 0.1695(V)
Nominal Input Voltage VDD 3.3V
Viewing angle (v/h) 80/80/80/80 (Typ.)(CR≥10)
Contrast 500:1
Luminance(cd/m2) 400
Response Time(Rising) 30 (Typ.)(Tr+Td) ms
Support Color 16.7M colors
Backlight MTBF(hr) 10000(Min)
Touchscreen Specification
Type Cjtouch Projected Capacitive touch screen
Multi touch 10points touch
Touch Life Cycle 10 millions
Touch Response time 5ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0~50°C
Storage Temp. -20~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%
5
6
7

Components:

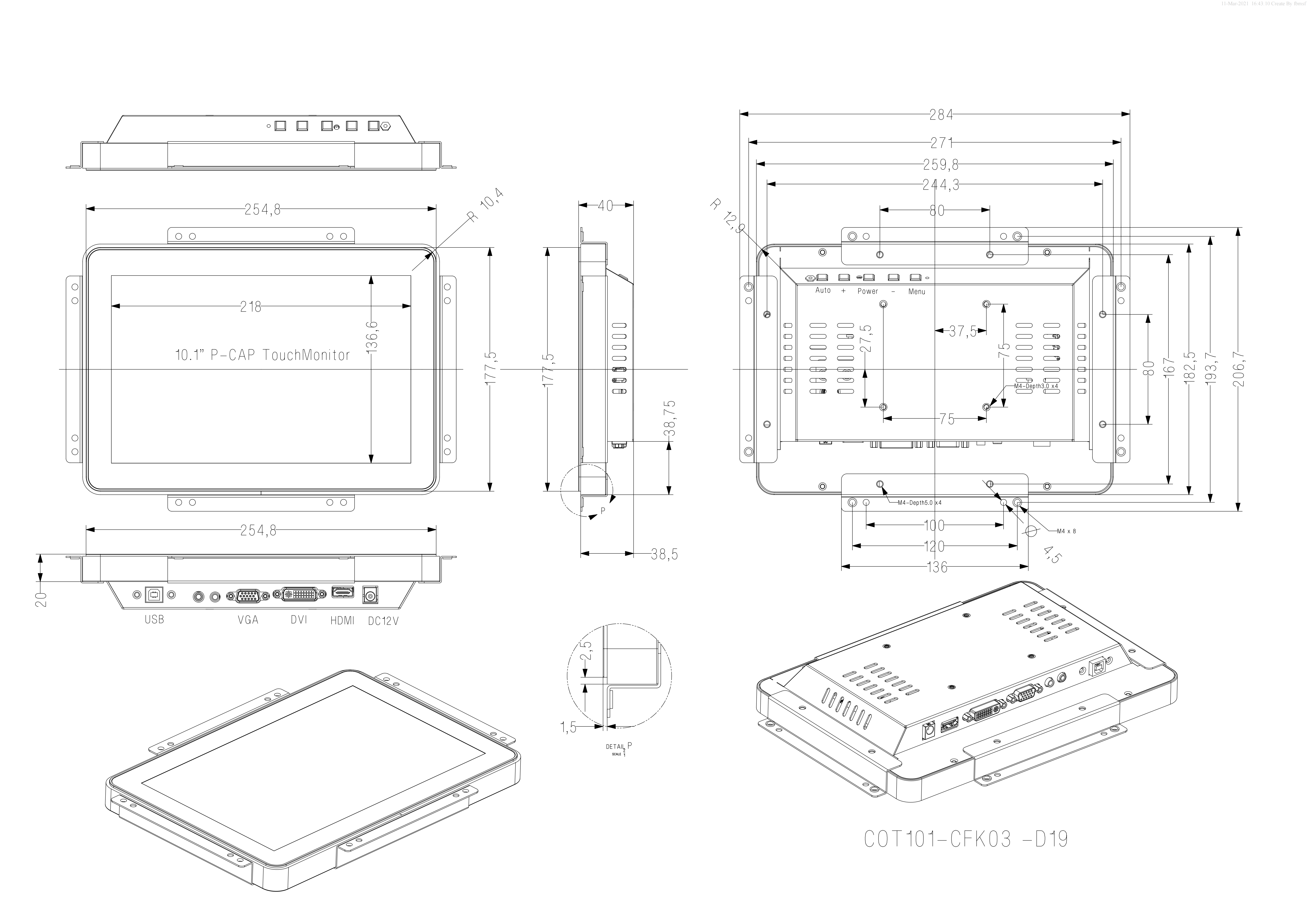

COT101-CFK03-ASM-D19_00

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/32-inch-touch-screen-monitor-with-projected-capacitive-touch-screen-product/

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/
