12.1 inch CJtouch Metal Frame Wall Embedded Mount Lcd Lcd Display General Open Frame 21.5 27 43 Inch Ir Touch Screen Monitor
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
Specification:
|
General
|
|
|
Model
|
COT121-APF02
|
|
Series
|
Metal Case Open Frame
|
|
Monitor Dimensions
|
Width: 294mm Height: 234mm Depth: 44.5mm
|
|
LCD Type
|
12.1" Active matrix TFT-LCD
|
|

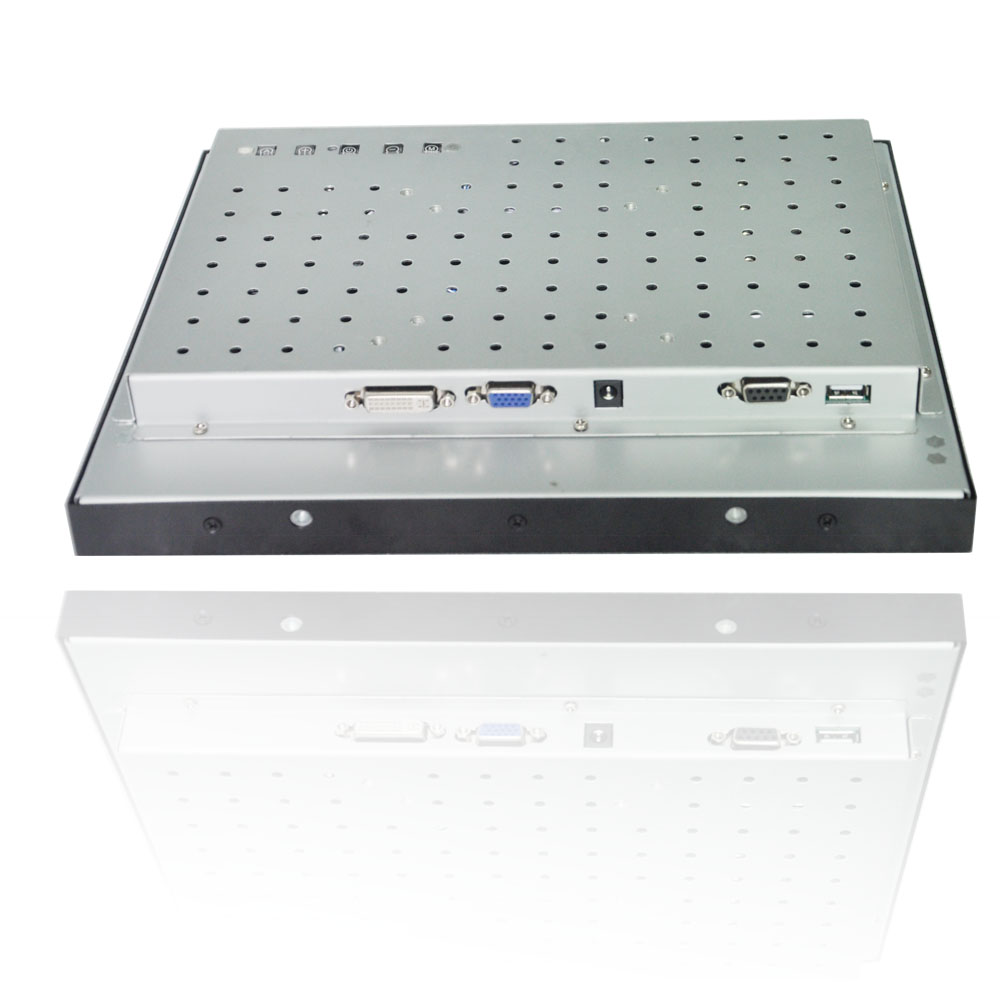

Video Input
|
VGA ,DVI
|
|
OSD controls
|
Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
|
|
Power Supply
|
Type: External brick
|
|
Input (line) voltage: 100-240 VAC, 50-60 Hz
|
|
|
Output voltage/current: 12 volts at 4 amps max
|
|
|
Mount Interface
|
1)VESA 75mm and 100mm
|
|
2)Mount bracket, horizontal or vertical
|
|
|
LCD Specification
|
|
|
Active Area(mm)
|
246.0(H)×184.5(V)
|
|
Resolution
|
800×600@75Hz
|
|
Dot Pitch(mm)
|
0.3075×0.3075
|
|
Nominal Input Voltage VDD
|
+3.3V(Typ)
|
|
Viewing angle (v/h)
|
70°/70°/50°/60°(CR>5)
|
|
Contrast
|
600:01:00
|
|
Luminance(cd/m2)
|
400
|
|
Response Time(Rising/Falling)
|
5ms/5ms
|
|
Support Color
|
16.2M colors
|
|
Backlight MTBF(hr)
|
40000
|
|
Touchscreen Specification
|
|
|
Type
|
Cjtouch SAW touch screen
|
|
Resolution
|
4096*4096
|
|
Light Transmission
|
92%
|
|
Touch Life Cycle
|
50 millions
|
|
Touch Response time
|
8ms
|
|
Touch System Interface
|
USB interface
|
|
Power consumption
|
+5V@80mA
|
|
External AC Power Adapter
|
|
|
Output
|
DC 12V /4A
|
|
Input
|
100-240 VAC, 50-60 Hz
|
|
MTBF
|
50000 hr at 25°C
|
|
Environment
|
|
|
Operating Temp.
|
0~50°C
|
|
Storage Temp.
|
-20~60°C
|
|
Operating RH:
|
20%~80%
|
|
Storage RH:
|
10%~90%
|
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
