12.1 Inch touch screen gaming monitor with High brightness
Specification:
| General | |
| Model | COT121-CFF03-1000 |
| Series | Flat Screen Frameless waterproof |

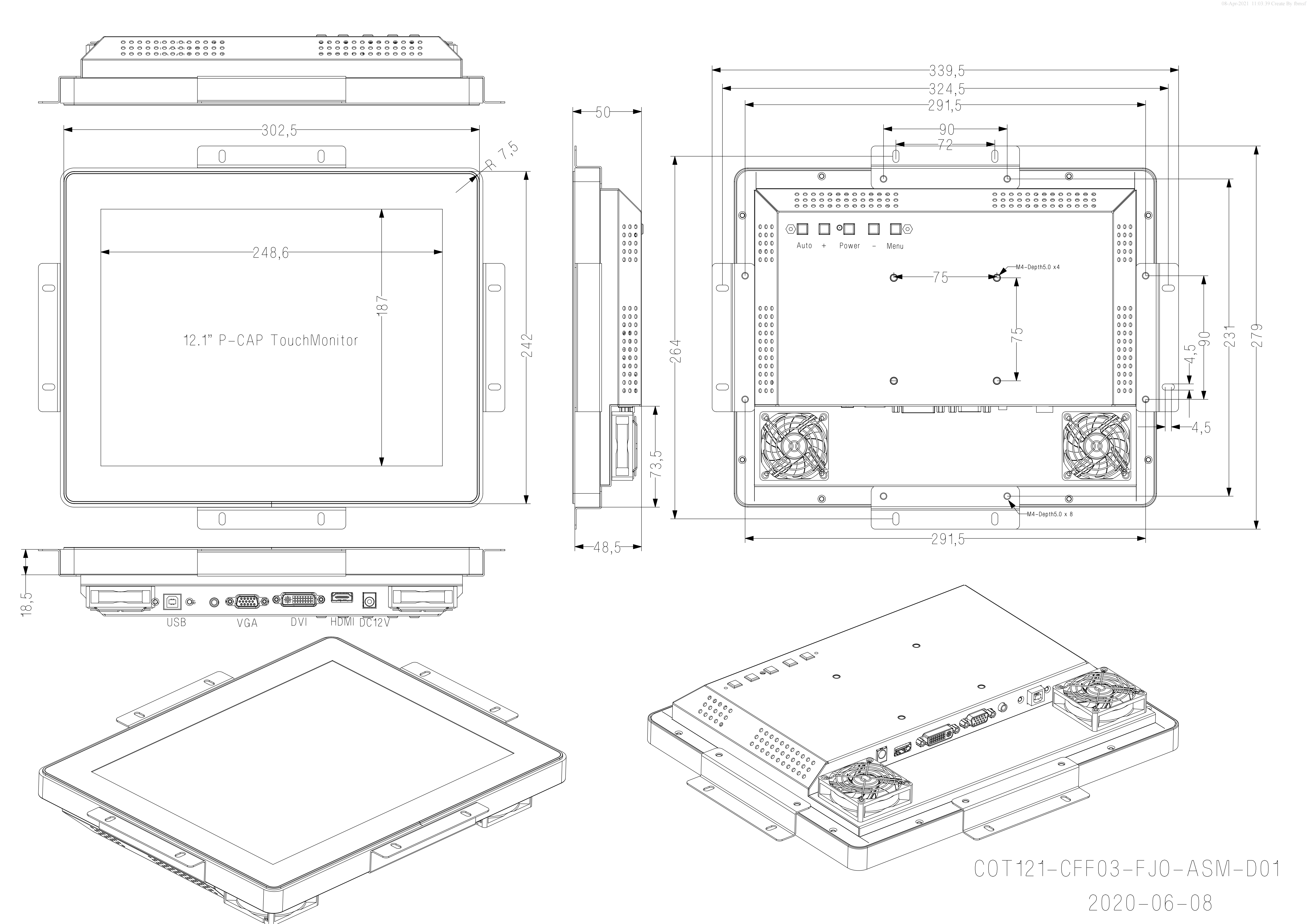

| Monitor Dimensions | Width: 293.5mm Height: 224mm Depth: 50mm |
| LCD Type | 12.1” Active matrix TFT-LCD |
| Video Input | VGA HDMI and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 246.0(H)×184.5(V) |
| Resolution | 800×600@60Hz |
| Dot Pitch(mm) | 0.3075×0.3075 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/65/75 (Typ.)(CR≥10) |
| Contrast | 700:1 |
| Luminance(cd/m2) | 1000 |
| Response Time(Rising/Falling) | 30ms/30ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Resolution | 10points touch |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. What kind of frame material and glass material do you choose?
We have our own supporting sheet metal building materials factory, as well as our own glass production company. We also have our own dust-free clean workshop for the production of laminated touch screens, and our own dust-free clean workshop for the production and assembly of touch displays.
Therefore, a touch screen and a touch monitor, from research and development, design to production, are all independently completed by our company, and we have a very mature set of systems.
2. Do you provide customized product service?
Yes, we can provide, we can design and produce according to the size, thickness and structure you want.
