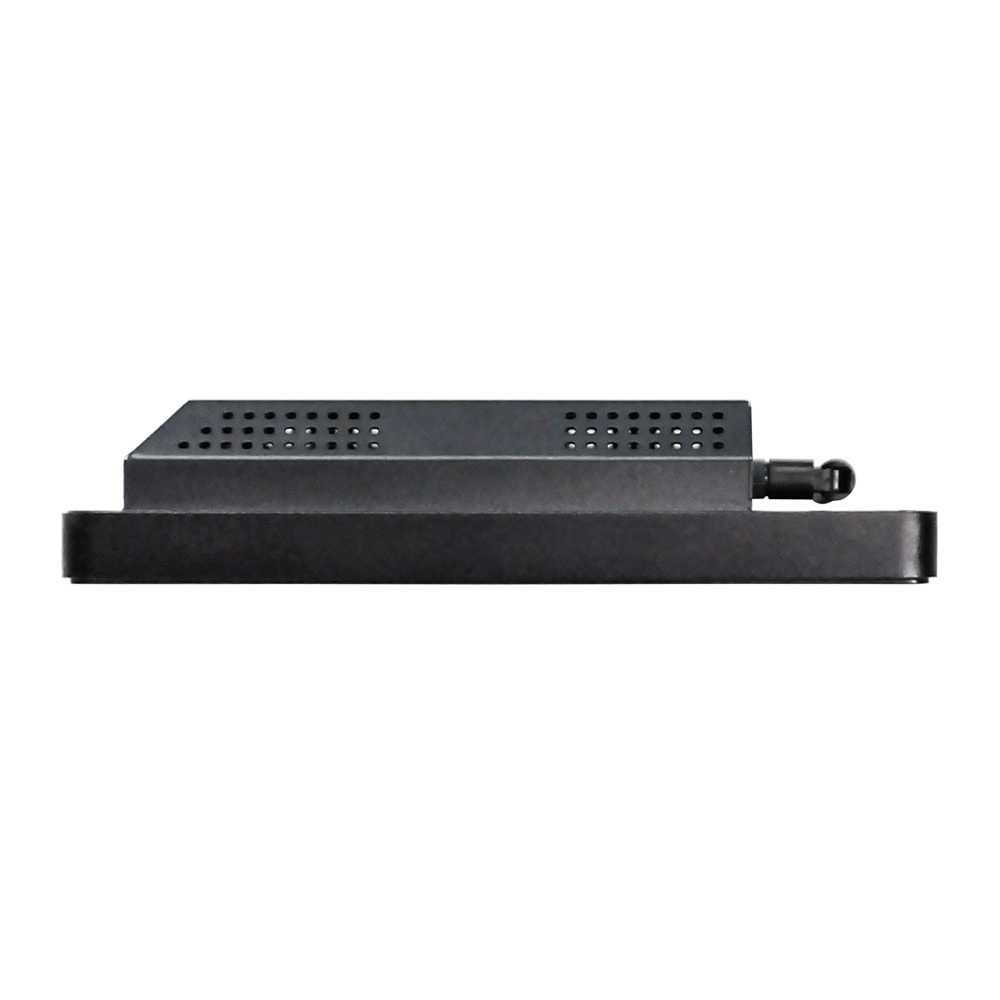

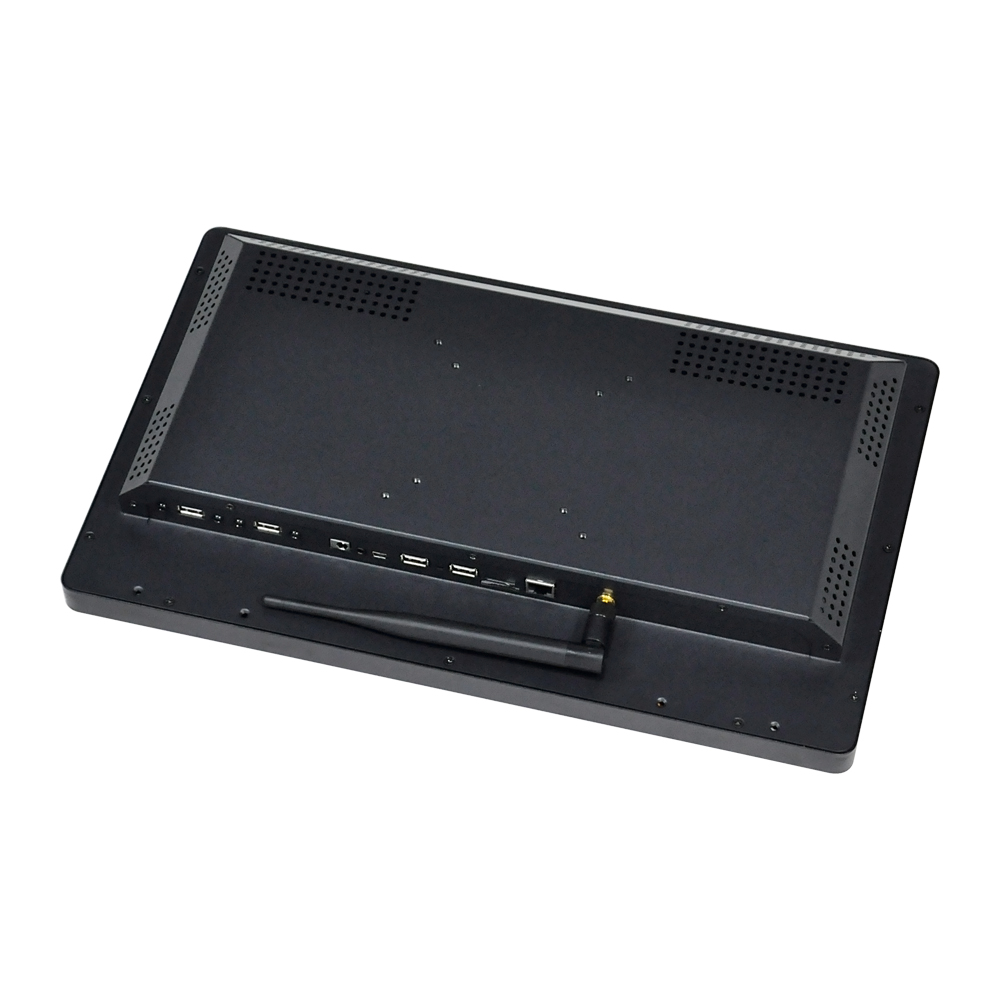

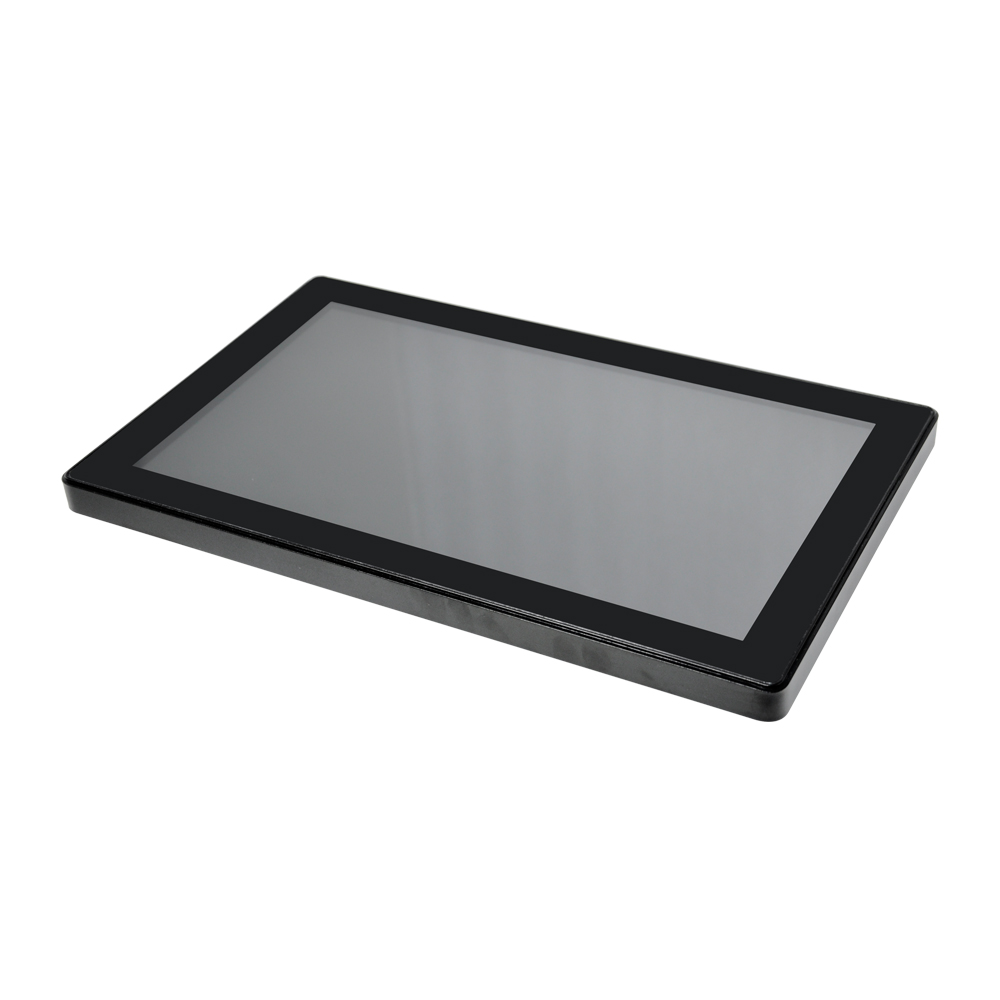

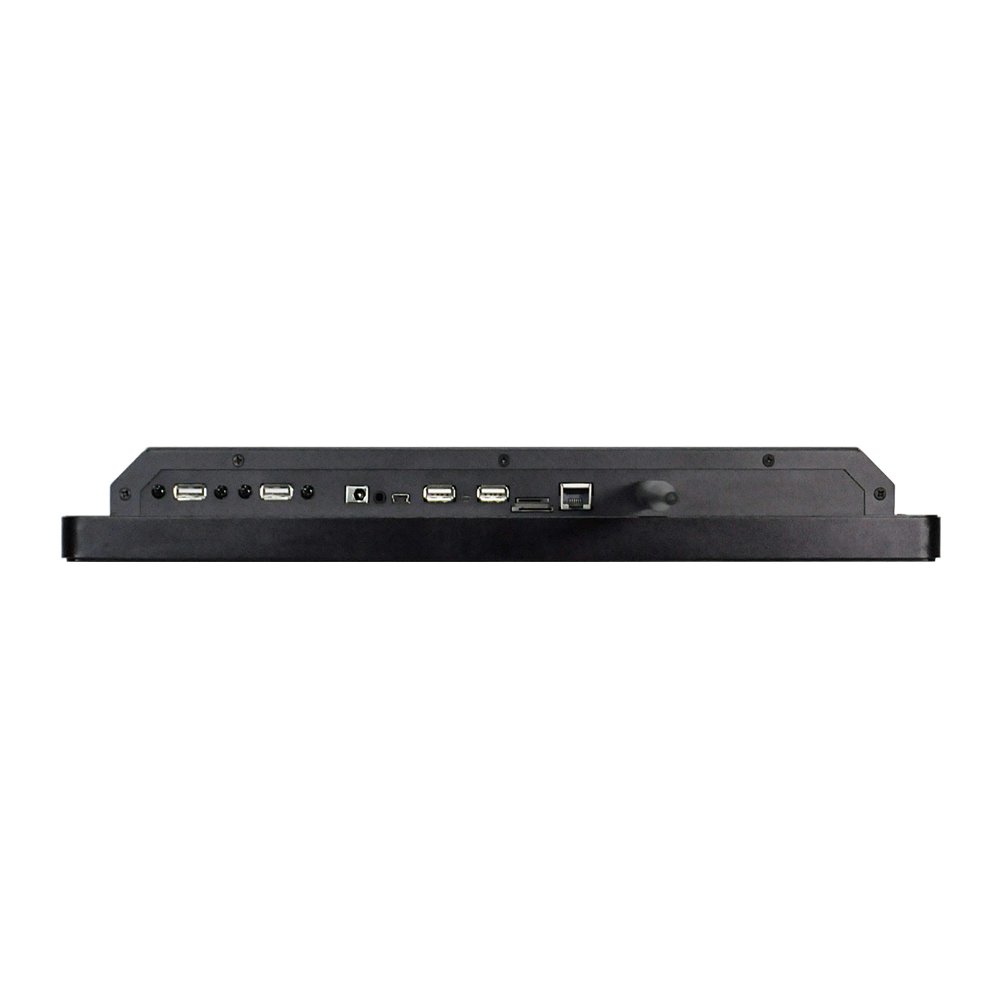

15.6 inch RK3288 Android all in one computers touch screen pc
Specification:
| Total parameter | Diagonal Size | 15.6'' diagonal, a-Si TFT-LCD (LED) |
| Aspect Ratio | 16:9 | |
| Enclosure Color | Black | |
| Speakers | Two 5W internal speakers | |
| Mechanical | Unit Size (WxHxD mm) | 399.7x247x57.9 |
| VESA Holes (mm) | 75x75,100x100 | |
|
Computer |
Mother board |
RK3288 ARM Cortex-A17 |
|
Memory |
2G+8GB |
|
| USB | 5 x USB | |
| LAN | 10/100/1000 Ethernet ,support PXE boot & remote wake up | |
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac | |
| BIOS | AMI | |
|
LCD Specification |
Active Area(mm) |
344.16(H)×193.59(V) |
|
Resolution |
1920(RGB)×1080 , FHD | |
|
Dot Pitch(mm) |
0.05975×0.17925 mm | |
|
Viewing angle(Typ.)(CR≥10) |
85/85/85/85 | |
|
Contrast (Typ.) (TM) |
800:1 | |
|
Brightness (typical) |
LCD Panel: 265 nits
PCAP: 235 nits |
|
|
Response Time (Typ.)(Tr/Td) |
30ms | |
|
Support Color |
262K , 45% NTSC | |
|
Backlight MTBF(hr) |
15000 | |
|
Touchscreen Specification |
Type |
Cjtouch Projected Capacitive(PCAP) touch screen |
|
Multi touch |
10 points touch |
|
| Power |
Power Consumption (W) |
DC 12V /5A ,DC head 5.0x2.5MM |
|
Input Voltage |
100-240 VAC, 50-60 Hz |
|
|
MTBF |
50000 hr at 25°C |
|
|
Environment |
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
|
Operating RH: |
20%～80% |
|
|
Storage RH: |
10%～90% |
|
| Accessories | Included | 1 x Power Adapter,1 x Power Cable, 2 x brackets |
| Optional | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand | |
| Warranty | Warranty Period | 1 Year Free Warranty |
| Technical Support | Lifetime |
Components:
Power Cord with Switching Adapter *1 Pcs
Bracket*2 Pcs
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. How about your company Experience?
As a dynamic team, through our more than 12years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
2. Touch screen HS CODE: 8471609000
3. What's your main products?
Our main products are SAW/PCAP/IR touch screen,SAW/PCAP/IR touch screen monitors ,desktop monitor and All in one touch PC
