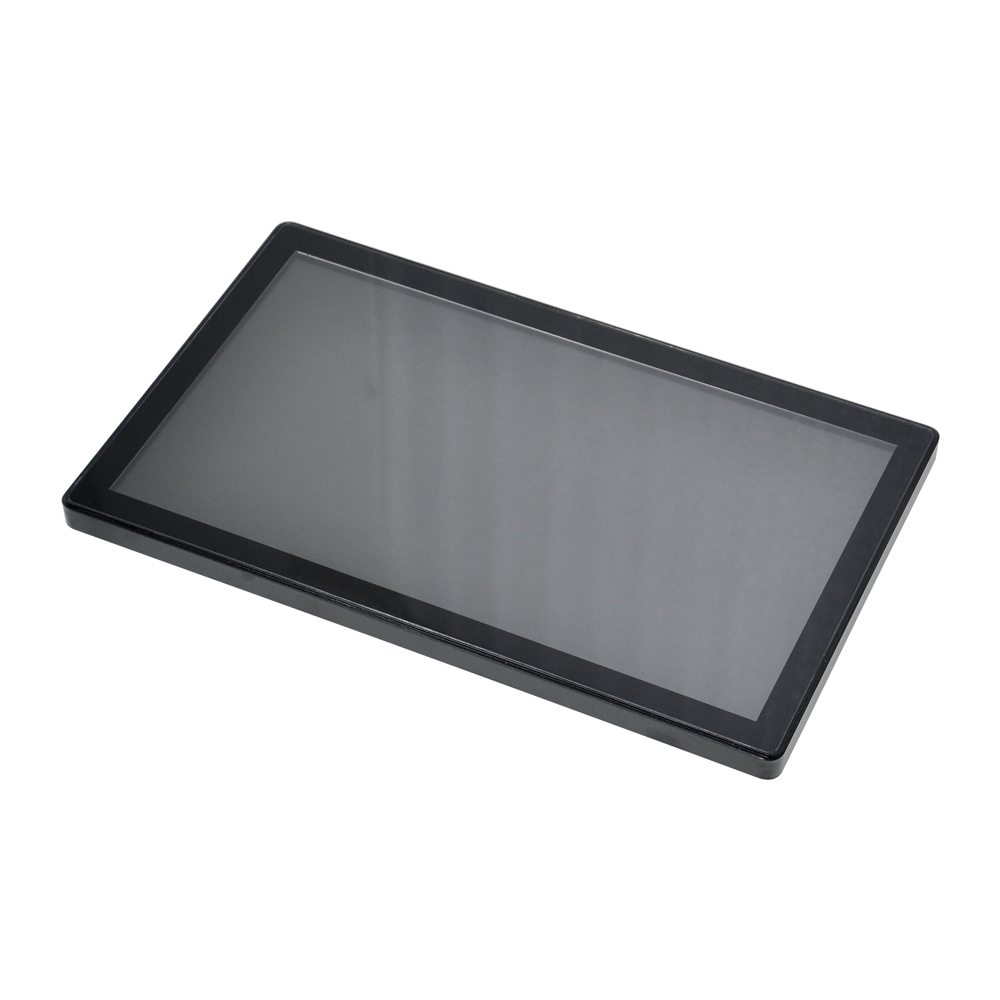

18.5 inch 1000cd/m2 High brightness Outdoor monitor with touch screen

Short Description:

· Front IP65 waterproof and dustproof.

· Industrial LCD panel A+, wide viewing angle, high nits, true color.

· Adopt multi-points PCAP touch panel

· High sensitive and fast-response. Covered with 2mm tempered glass for vandal-proof.

· EETI/Ili waterproof solution, touch function can work well with drop water on the screen.

· 1000 nits, sunlight readable

Send email to us

Product Detail

Product Tags

Specification:

Display Specifications
Characteristic		Value			Comment
LCD Size/Type		18.5” a-Si TFT-LCD
Aspect Ratio		16:9
Active Area		Horizontal	409.8mm
		Vertical	230.4mm
Pixel		Horizontal	0.300
		Vertical	0.300
Panel Resolution		1366(RGB)×768 (FHD)(60Hz)			Native
Display Color		16.7M , 72% NTSC			6-bits + Hi-FRC
Contrast Ratio		1000:1			Typical
Brightness		1000 nits			Typical
Response Time		3.6/1.4 (Typ.)(Tr/Td) ms			Typical
Viewing Angle		Horizontal	85/85		(Typ.)(CR≥10)
		Vertical	80/80
Video Signal Input		VGA and DVI and HDMI
Physical Specifications
Dimensions		Width		454 mm
		Height		277mm
		Depth		40mm
Electrical Specifications
Power Supply		DC 12V 4A			Power Adapter Included
		100-240 VAC, 50-60 Hz			Plug Input
Power Consumption		Operating	38 W		Typical
		Sleep	3 W
		Off	1 W
Touch Screen Specifications
Touch Technology				Project Capacitive Touch Screen 10 Touch Point
Touch Interface				USB (Type B)
OS Supported	Plug and Play			Windows All (HID) ,Linux (HID) (Android Option)
Driver				Driver Offered
Environmental Specifications
Condition				Specification
Temperature		Operating		-10°C ~+ 50°C
		Storage		-20°C ~ +70°C
Humidity		Operating		20% ~ 80%
		Storage		10% ~ 90%
MTBF				30000 Hrs at 25°C

Components:

COT185-CFK03-1000-ASM-D01-202079174246_00

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/19-inch-ip65-waterproof-infrared-pc-monitor-touch-screen-product/

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
