19 inch i3/i5/i7 All in one touch screen pc
Specification:
| Total parameter | Diagonal Size | 19'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 5:4 | |
| Enclosure Color | Black | |
| Speakers | Two 5W internal speakers | |

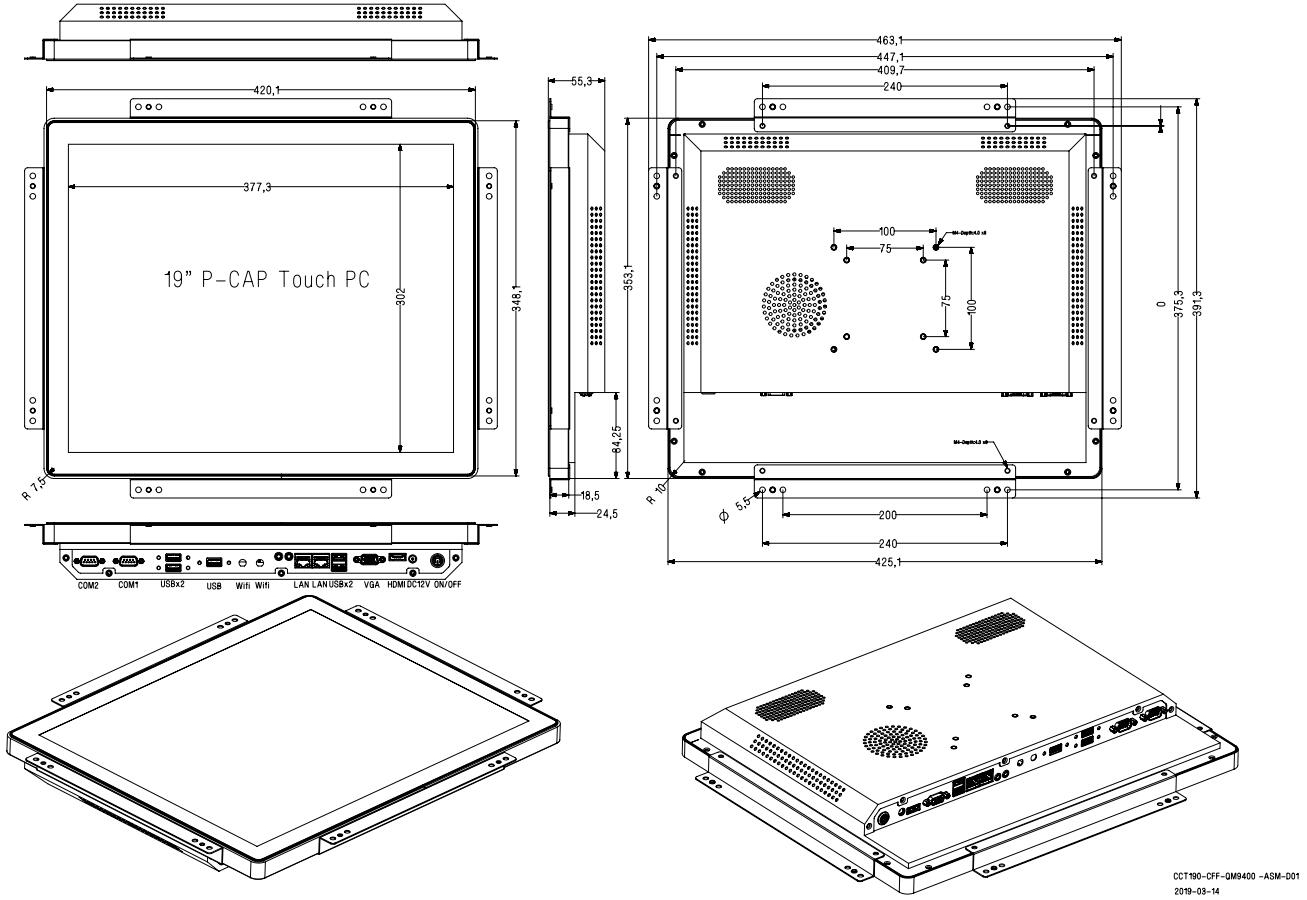

| Mechanical | Unit Size (WxHxD mm) | 425.1x353.1x55.3 |
| VESA Holes (mm) | 75x75,100x100 | |
|
Computer |
CPU |
Intel(R) Core I5-5250U |
|
Mother board |
B430 |
|
|
Memory (RAM) |
8GB DDR3L |
|
| Storage |
128GB SSD MSATA |
|
| USB |
2 x USB 2.0,2 x USB 3.0 |
|
| COM |
1 x COM |
|
| VGA |
1 x Output |
|
| HDMI |
1 x Output |
|
| Wifi |
Mini PCI-E (WiFi external elbow Antenna - SMA male) |
|
| LAN |
1000M LAN, Realtek 8111F.2x LAN optional |
|
| BIOS | AMI | |
| Languages | Windows 7 - 35 Language groups | |
| OS | No OS
Windows 7* Windows 10 |
|
|
LCD Specification |
Active Area(mm) |
376.32(H)×301.056(V) |
|
Resolution |
1280(RGB)×1024 [SXGA] @60Hz |
|
|
Dot Pitch(mm) |
0.098×0.294 mm |
|
|
Viewing angle(Typ.)(CR≥10) |
85/85/80/80 |
|
|
Contrast (Typ.) (TM) |
1000:1 |
|
|
Brightness (typical) |
LCD Panel: 250 nits PCAP: 220 nits |
|
|
Response Time (Typ.)(Tr/Td) |
3/7ms |
|
|
Support Color |
16.7M , 72% (CIE1931) |
|
|
Backlight MTBF(hr) |
30000 |
|
|
Touchscreen Specification |
Type |
Cjtouch Projected Capacitive(PCAP) touch screen |
|
Multi touch |
10 points touch |
|
| Power |
Power Consumption (W) |
DC 12V /5A ,DC head 5.0x2.5MM |
|
Input Voltage |
100-240 VAC, 50-60 Hz |
|
|
MTBF |
50000 hr at 25°C |
|
|
Environment |
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
|
Operating RH: |
20%～80% |
|
|
Storage RH: |
10%～90% |
|
| Accessories | Included | 1 x Power Adapter,1 x Power Cable, 2 x brackets |
| Optional | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand | |
| Warranty | Warranty Period | 1 Year Free Warranty |
| Technical Support | Lifetime |
Components:
Power Cord with Switching Adapter *1 Pcs
Bracket*2 Pcs
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. How many year the machine can lasting ?
It can work around 5-10 years.
2. Could l get 3 years warranty ?
We can provide 1 years Free warranty , you can add 20% unit price to get 3years warranty.
3. How much the tax if l buy the products?
Suggest you consult your local customs department ,because the import tax you need to pay to your country . Orwe can choose the DDP shipping way include the tax for you .
4. Can you put our brand ?
Yes, we support it.We can print your brand logo on the machine, or make the label sticker ,the colorful you can choose.
