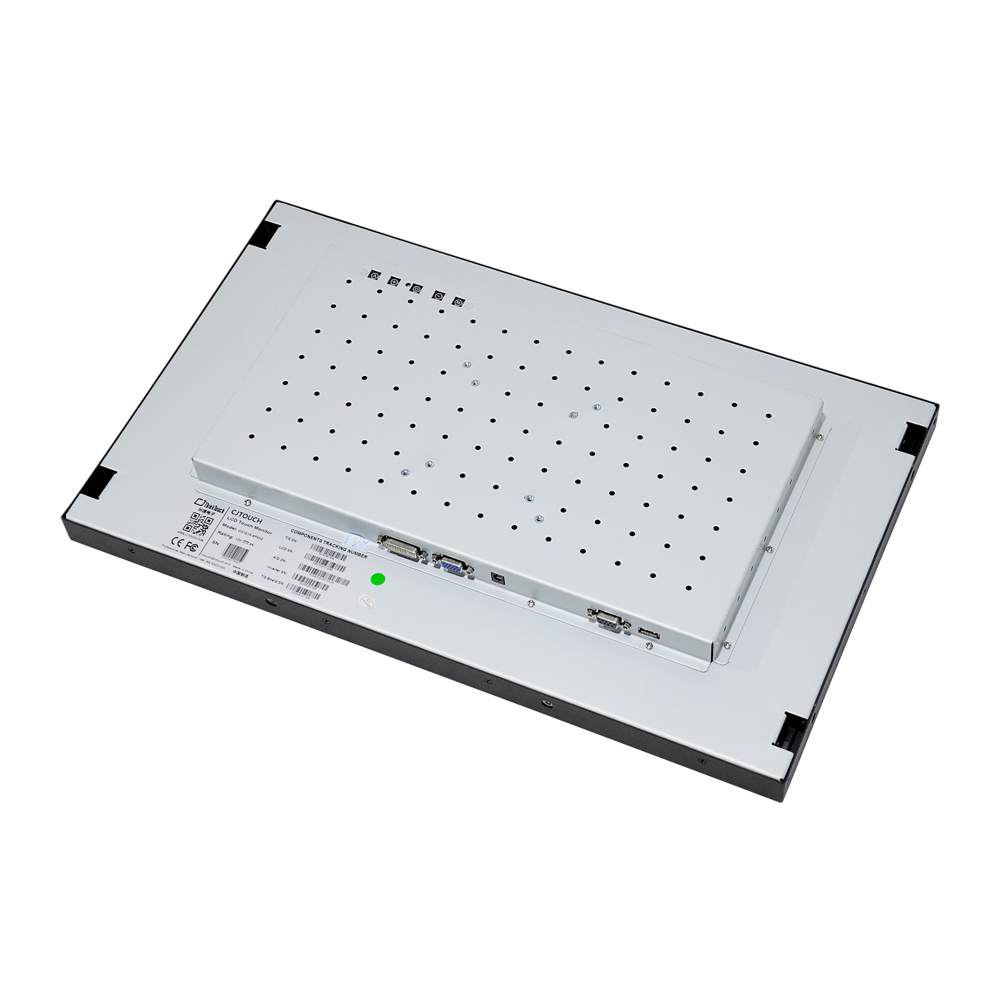

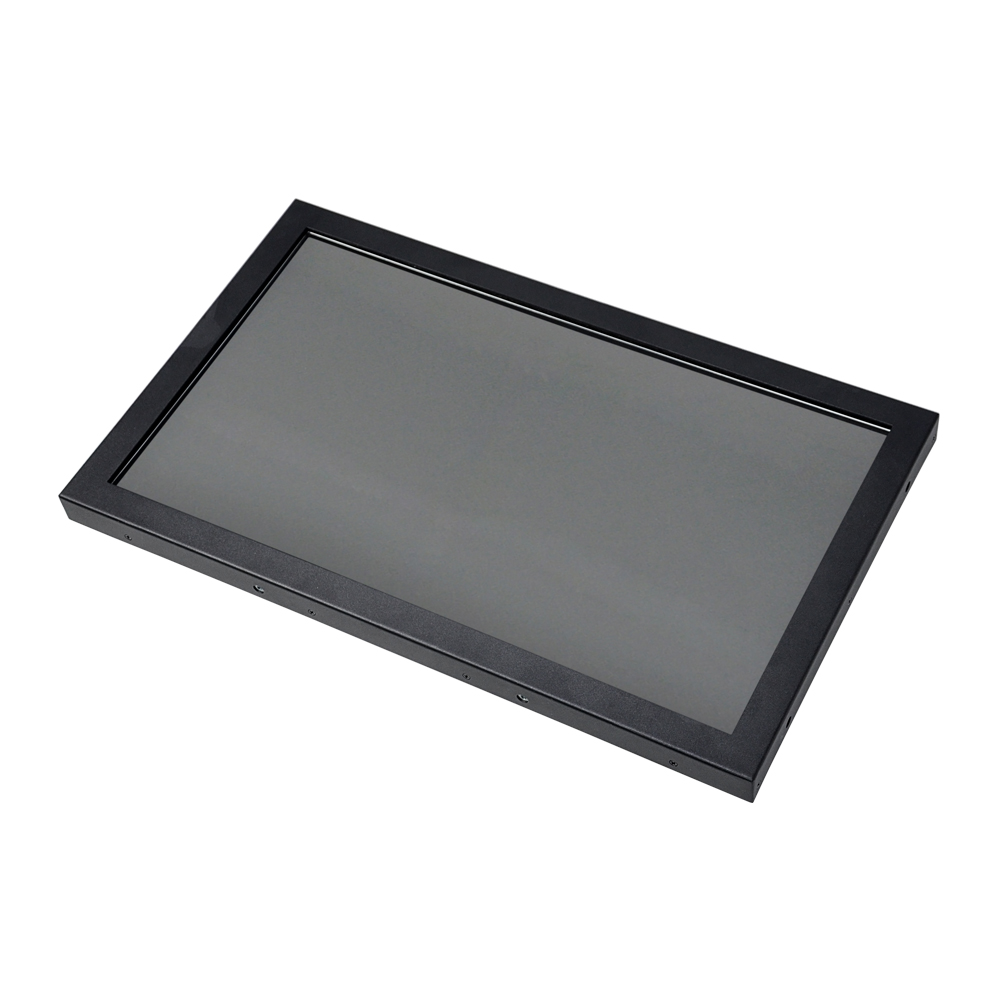

22 inch touch screen monitor SAW Touch monitor
Specification:
| General | |
| Model | COT215-APK03 |
| Series | Dust-proof and Compact |

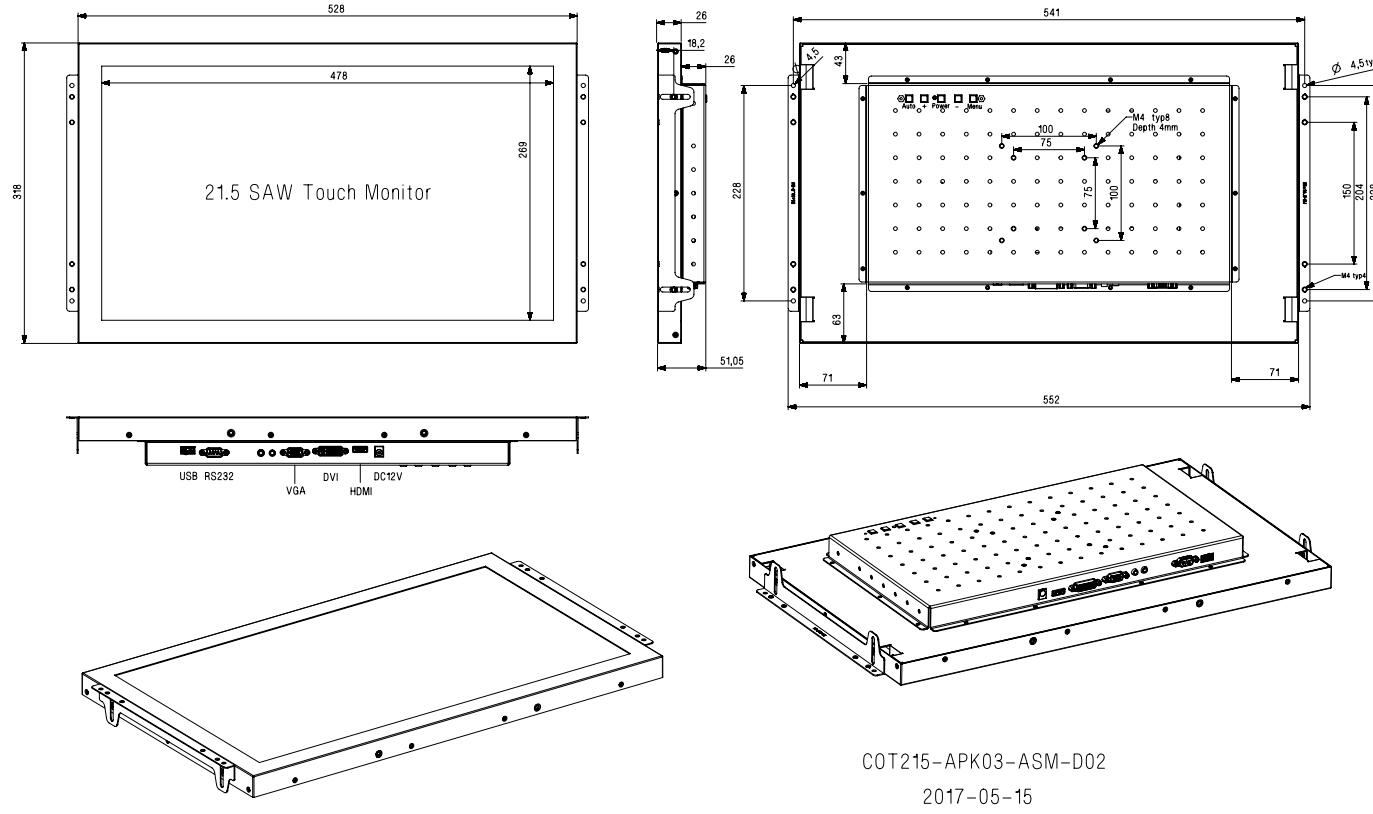

| Monitor Dimensions | Width: 528mm Height: 318mm Depth:56mm |
| LCD Type | 21.5”SXGA Color TFT-LCD |

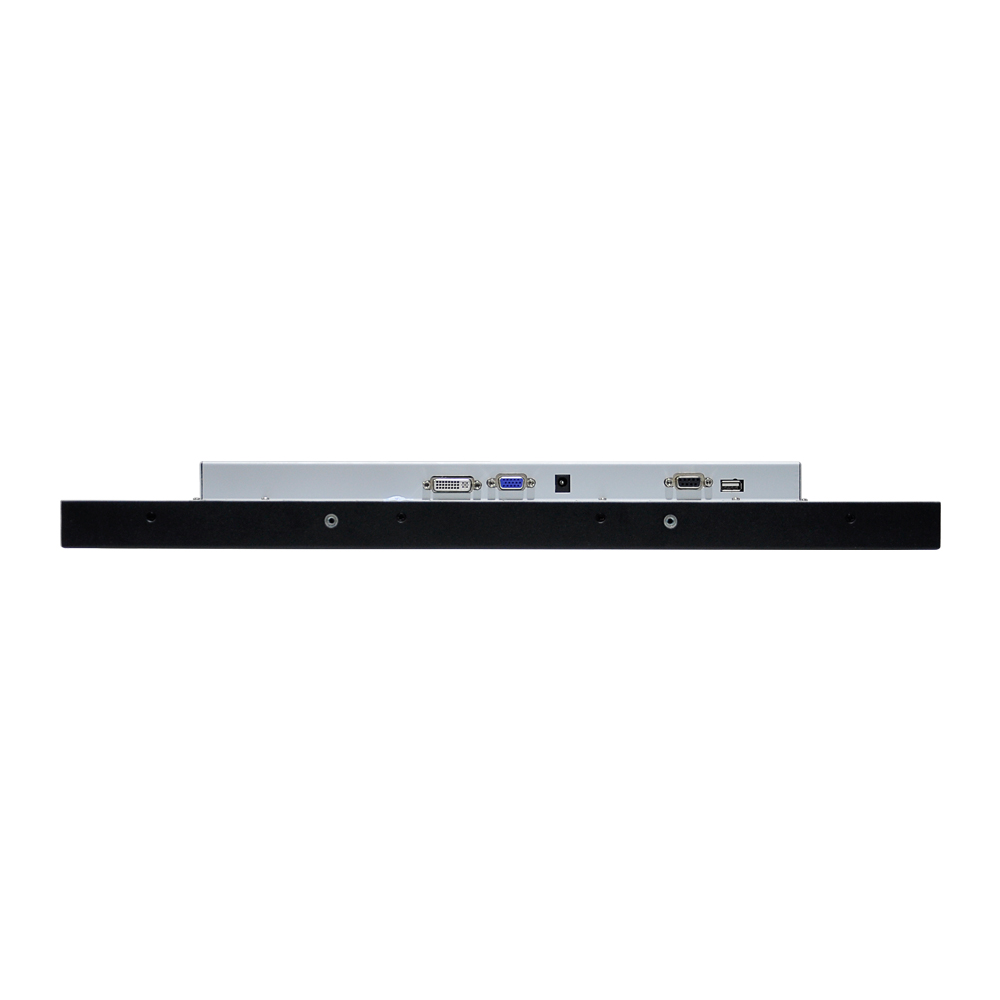

| Video Input | VGA DVI And HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 476.64(H)×268.11(V) |
| Resolution | 1920x1080@60Hz |
| Dot Pitch(mm) | 0.24825×0.24825 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 89°/89° |
| Contrast | 3000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5s/20s |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| Touchscreen Specification | |
| Type | Cjtouch surface acoustic wave (SAW) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
| Package | |
| Package way | 1sets in 1 carton EPE packaging inside |
| Gross weight/Carton size | 9.5KGS/60×18×39CM |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. What’s the delivery time?
Sample:2-7 working days.bulk order 7-25 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
2. How about your company Experience?
As a dynamic team, through our more than 12years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
3. What After-sales service can you offer ?
We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
