23.6″ USB IR Touch Screen Monitor/ Multi open frame touch monitor for Kiosk

Short Description:

  • *Waterproof, Vandalproof and Anti-glare function optional
  • * Ideal cost-effective touch soluction
  • * Long life cycle
  • * Future generation panels phased-in without external changes
  • * USB Interface, plug and play
  • * Supporting multi-language OSD control

Product Detail

Product Tags

23.6 inch IR Touch Monitor specification :

Touch Screen Monitor

  • Series: metal-cased open frame dustproof type

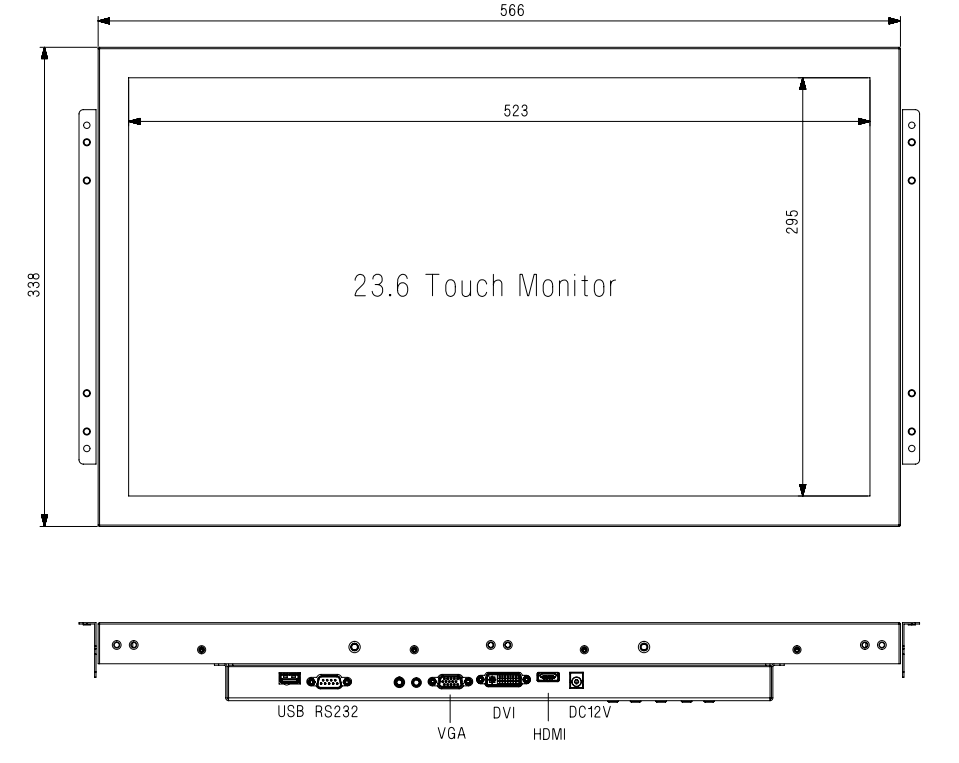

  • Size: 566mm*338mm*29 mm
  • LCD Type: a-Si TFT-LCD
  • OSD control: [auto]+[-]+[+]+[menu]+[power],Allow on screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
  • Mount interface: VESA 75mm and 100m + mount bracket

Touch screen

  • Touch Technology: Infrared Touch
  • Touch points: Default 2 points ( 4/6/10 points optional)
  • Light transmission: 92%
  • Touch life cycle: 60 millions
  • Touch response time: 6ms
  • Touch system interface: USB interface
  • Power consumption: +5V@80m

LCD Panel:

  • Active area: 521.28 × 293.22 mm (H×V)
  • Resolution: 1920(RGB)×1080   [FHD]
  • Display color: 16.7M , 72% [CIE1931]
  • Luminance: 300 (Typ.)
  • Viewing angle: 85/85/80/80 (Typ.)(CR≥10)
  • Contrast ratio: 1000 : 1 (Typ.)
  • Response time: 1.5/3.5 (Typ.)(Tr/Td) ms

Components:

  • 1.2m USB Cable+ 1.8m VGA Cable+ Power Cord+ Rear Bracket+ CD

Warranty:

  • 1 year

touch screen

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Company Profile

Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
