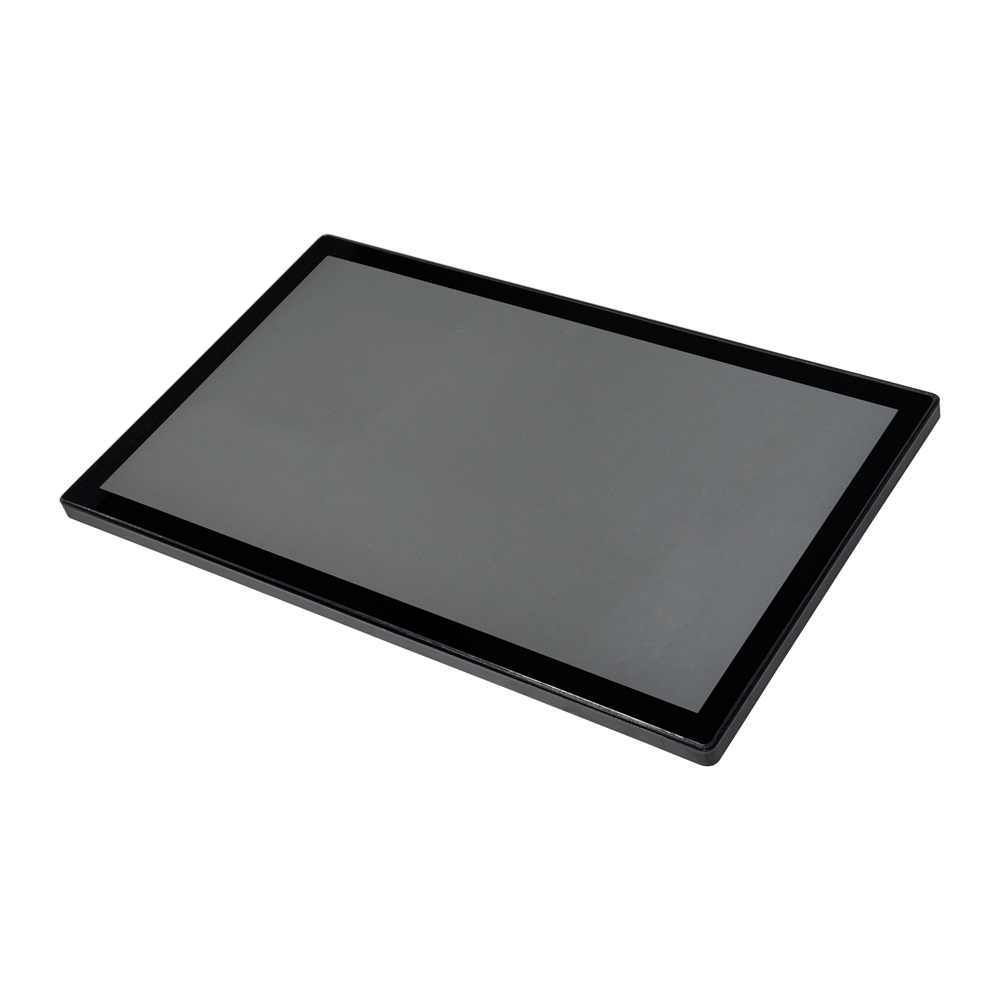

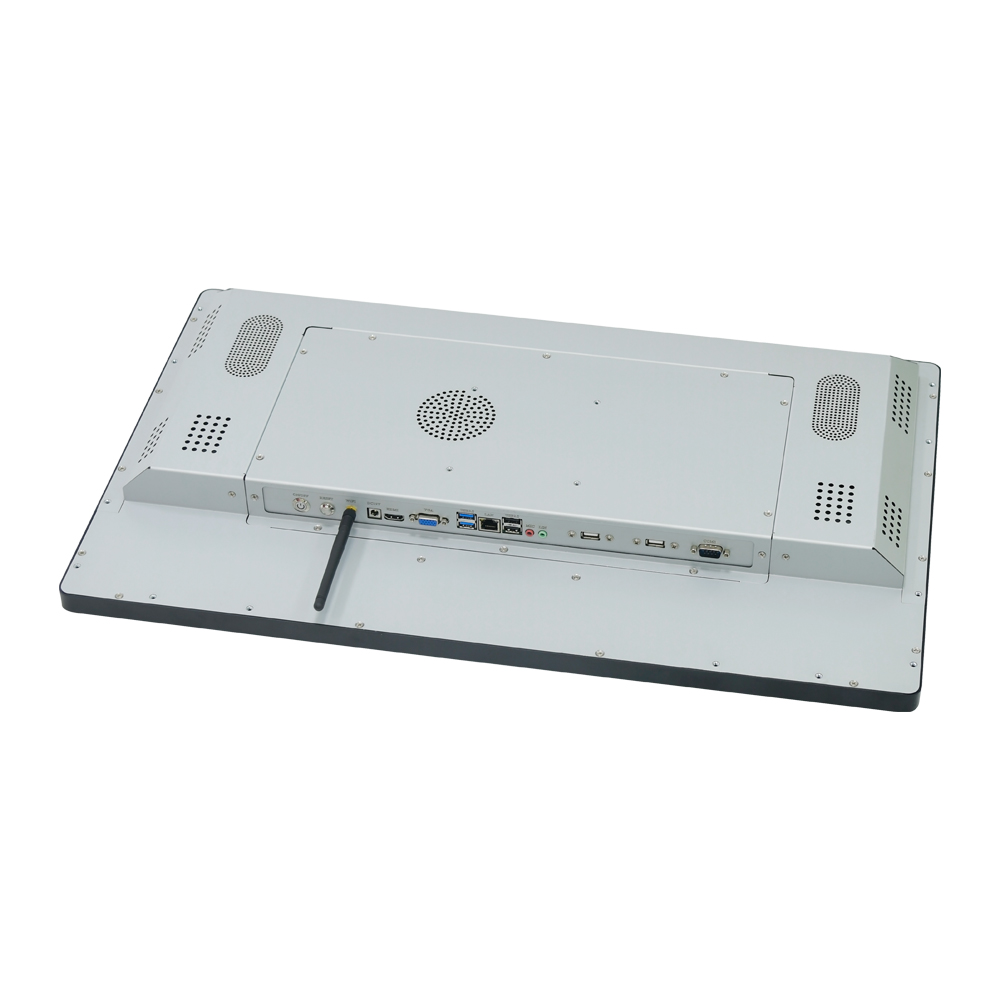

27 inch touch screen all in one computer with i3/i5/i7 CPU
Specification:
| Total parameter | Diagonal Size | 27'' diagonal, a-Si TFT-LCD |
| Aspect Ratio | 16:9 | |
| Enclosure Color | Black | |
| Speakers | Two 5W internal speakers | |

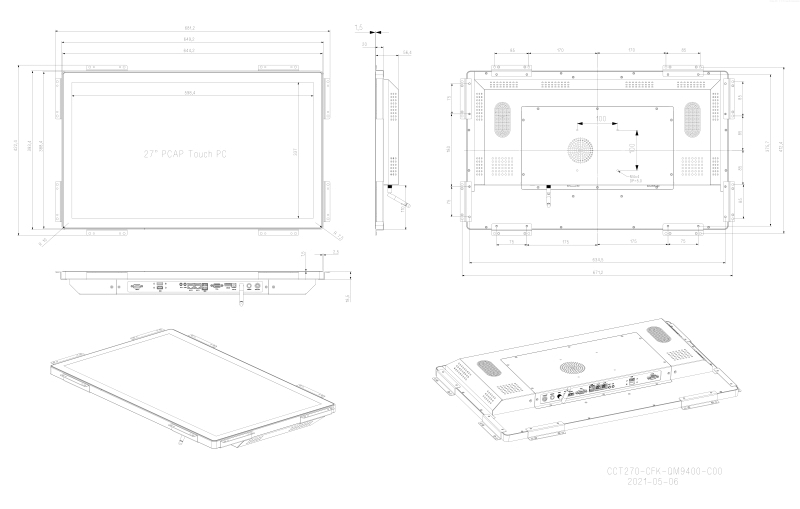

| Mechanical | Unit Size (WxHxD mm) | 649.2x393.4x56.4 |
| VESA Holes (mm) | 75x75,100x100 | |
|
Computer |
CPU |
Intel I5 4200U |
|
Mother board |
YY B430 | |
|
Memory (RAM) |
8GB DDR3L SODIMM on 1 of 2 slot (Expandable to 8GB) |
|
| Storage |
128GB SSD MSATA |
|

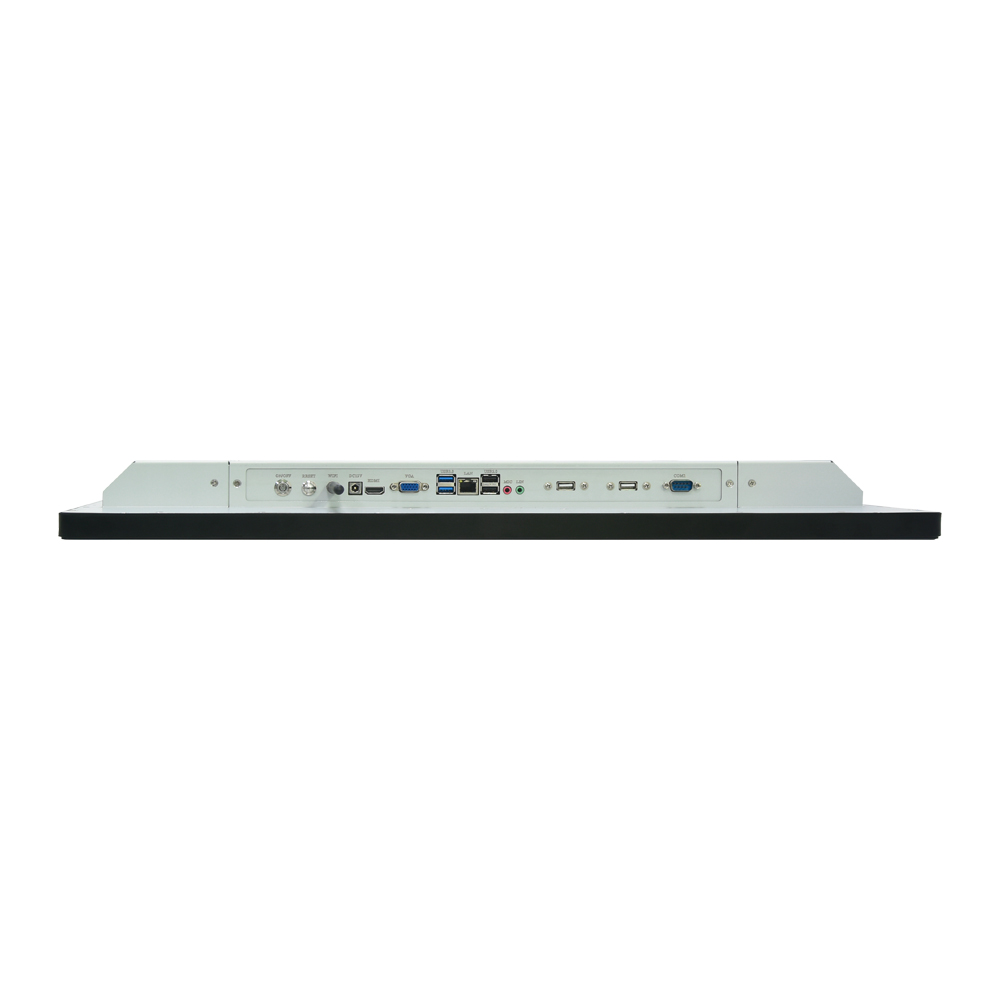

| USB | 4 x USB 2.0(2 USB HOST,2 USB sockets),2 x USB 3.0 | |
| Com port | 1x Com port | |
| HDMI | 1 | |
| DVI | 1 | |
| LAN | 10/100/1000 Ethernet ,support PXE boot & remote wake up | |
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac | |
| BIOS | AMI | |
| Languages | Windows 7 - 35 Language groups | |
| OS | No OS
Windows 7* Windows 10 |
|
|
LCD Specification |
Active Area(mm) |
596.736 × 335.664 mm (H×V) |
|
Resolution |
1920x1080@60Hz | |
|
Dot Pitch(mm) |
0.1036×0.3108 (H×V) | |
|
Viewing angle(Typ.)(CR≥10) |
89°/89°/89°/89° | |
|
Contrast (Typ.) (TM) |
3000:1 | |
|
Brightness (typical) |
250cd/m² | |
|
Response Time (Typ.)(Tr/Td) |
20 (Typ.)(G to G) (ms) | |
|
Support Color |
16.7M , 100% sRGB | |
|
Backlight MTBF(hr) |
30000 | |
|
Touchscreen Specification |
Type |
Cjtouch Projected Capacitive(PCAP) touch screen |
|
Multi touch |
10 points touch |
|
| Power |
Power Consumption (W) |
DC 12V /5A ,DC head 5.0x2.5MM |
|
Input Voltage |
100-240 VAC, 50-60 Hz |
|
|
MTBF |
50000 hr at 25°C |
|
|
Environment |
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
|
Operating RH: |
20%～80% |
|
|
Storage RH: |
10%～90% |
|
| Accessories | Included | 1 x Power Adapter,1 x Power Cable, 2 x brackets |
| Optional | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand | |
| Warranty | Warranty Period | 1 Year Free Warranty |
| Technical Support | Lifetime |
Components:
Power Cord with Switching Adapter *1 Pcs
Bracket*2 Pcs
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. If I order a large quantity of products, can your factory capacity support it?
Yes, our factory is up to 50,000 units monthly production capacity, we are able to support your needs.
2. Why should I choose CJTOUCH?
We are a professional manufacturer of touch screen Touch PC and touch monitor with 12 years experience.
