Display Specifications | ||||
Characteristic | Value | Comment | ||
LCD Size/Type | 32” a-Si TFT-LCD | |||
Aspect Ratio | 16:9 | |||
Active Area | Horizontal | 698.4mm | ||
Vertical | 392.85mm | |||
Pixel | Horizontal | 0.36375 | ||
Vertical | 0.36375 | |||
Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | ||
Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
Contrast Ratio | 1200:1 | Typical | ||
Brightness | 400 cd/m² (Typ.) | Typical | ||
Response Time | 8ms | Typical | ||
ng Angle | Horizontal:178 | Typical 89/89/89/89 (Min.)(CR≥10) | ||
Vertical:178 | ||||
Speaker | 2pcs | |||
Video Signal Input | VGA and DVI and HDMI | |||
Physical Specifications | ||||

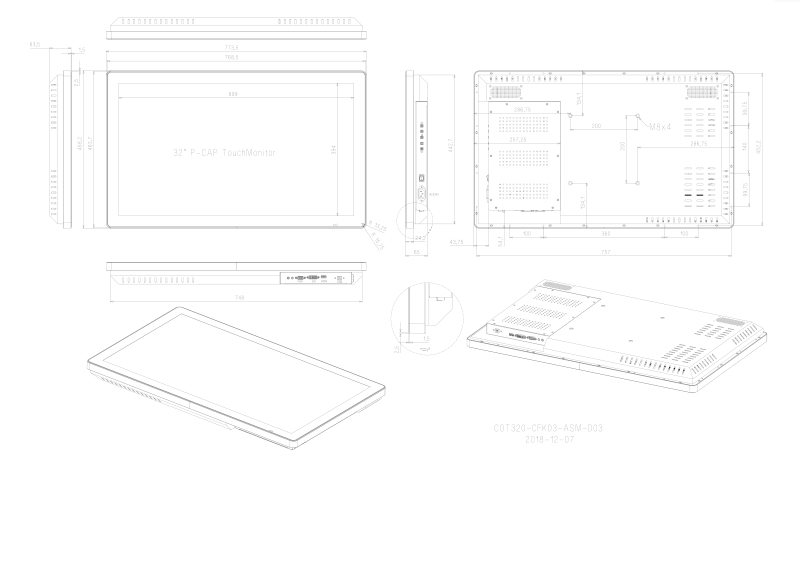

Dimensions | Width | 773.5mm | ||
Height | 468.2 mm | |||
Depth | 65 mm | |||
Electrical Specifications | ||||
Power Supply | AC220V | Power Adapter Included | ||
100-240 VAC, 50-60 Hz | Plug Input | |||
Power Consumption | Operating | 38 W | Typical | |
Sleep | 3 W | |||
Off | 1 W | |||
Touch Screen Specifications | ||||
Touch Technology | Project Capacitive Touch Screen 10 Touch Point | |||
Touch Interface | USB (Type B) | |||
OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
Driver | Driver Offered | |||
Environmental Specifications | ||||
Condition | Specification | |||
Temperature | Operating | -10°C ~+ 50°C | ||
Storage | -20°C ~ +70°C | |||
Humidity | Operating | 20% ~ 80% | ||
Storage | 10% ~ 90% | |||
MTBF | 30000 Hrs at 25°C |
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
