43″ (4K) back side LED-Light touch screen monitor

Short Description:

· Rigid high-quality PCB-mounted LEDs, no adhesive strips,no hotspots, no dark corners

· True-flat, black closed-frame designs

· 4K screen touch monitor

· WVA 178x 178 for landscape or portrait usage

· Dual-line LEDs in Addressable version

· 10-touch PCAP/IR behind 3mm tempered glass

· Ultra narrow bezel design

· Accept Customization touch screen display


Product Detail

Product Tags

Specification:

Display Specifications
Characteristic Value Comment
LCD Size/Type 43” a-Si TFT-LCD
LED Yes
Aspect Ratio 16:9
Active Area Horizontal 941.184mm
  Vertical 529.416mm
Pixel Horizontal 0.4902 mm
  Vertical 0.4902mm
Panel Resolution 1920(RGB)×1080 , FHD Native
Display Color 1.07B  (8-bit + Dithering)
Contrast Ratio 1000:1 Typical
Brightness 350 nits Typical
Response Time 12ms Typical
Viewing Angle Horizontal 178 89/89/89/89 (Min.)(CR≥10)
  Vertical 178

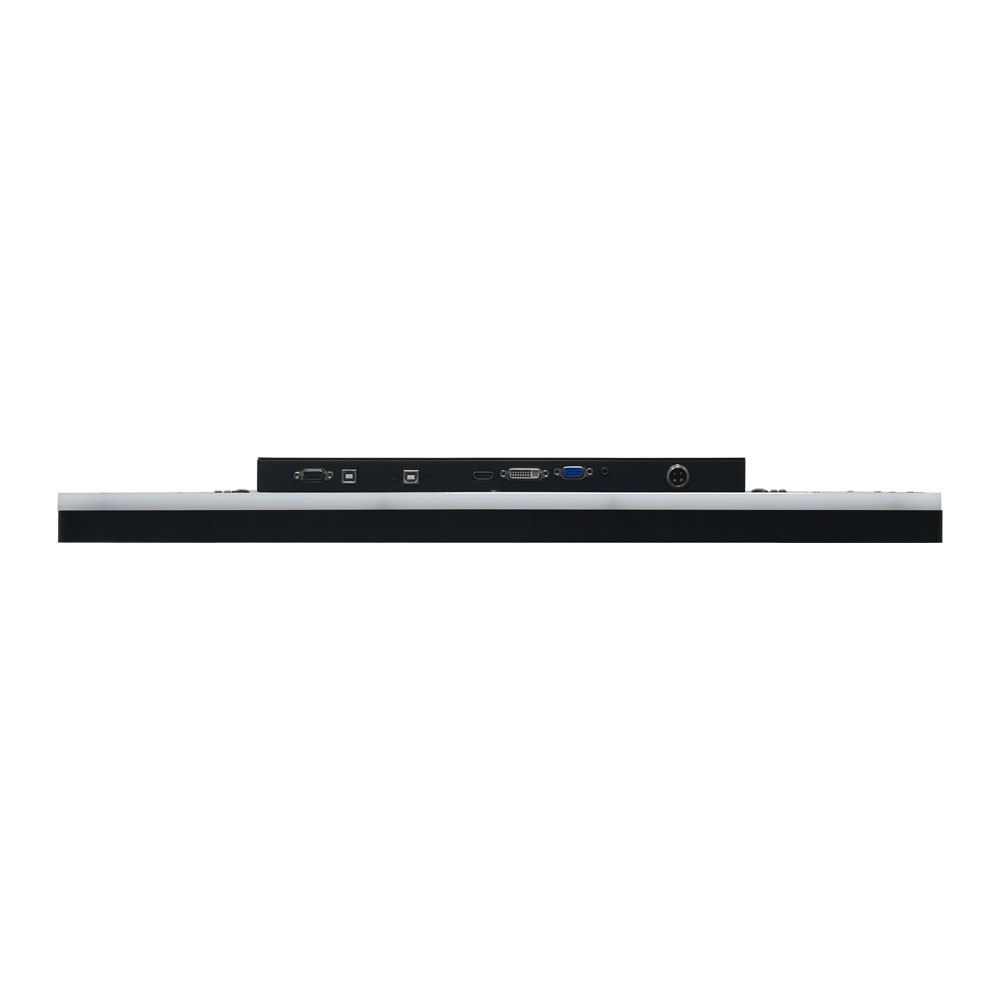

Video Signal Input VGA and DVI and HDMI

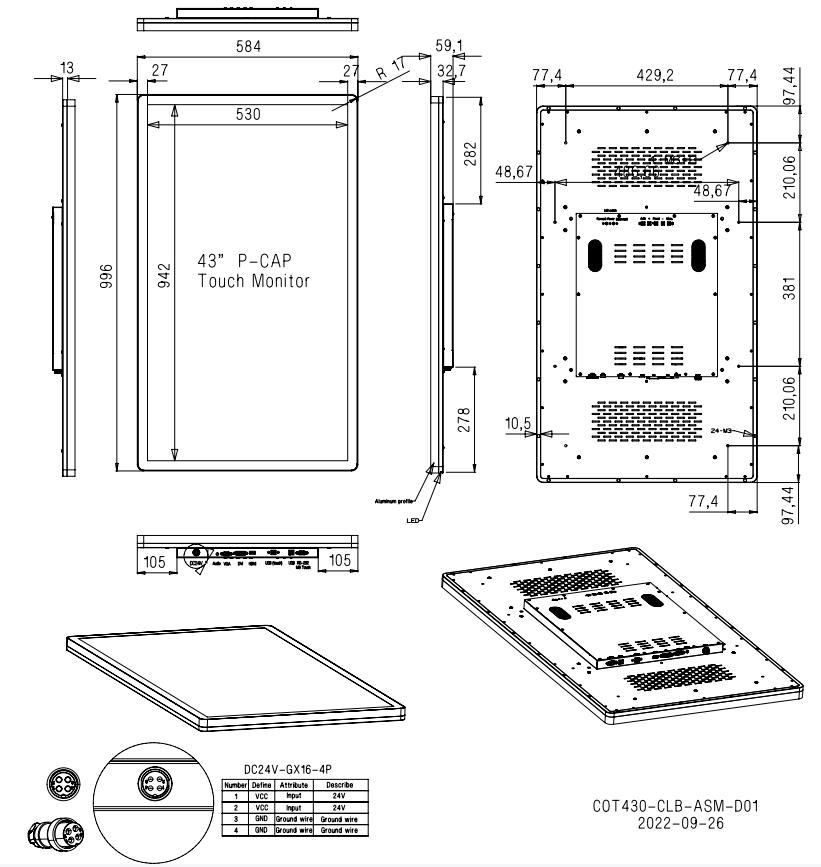

Physical Specifications
Dimensions Width 996mm Customized
  Height 584mm
  Depth 59.1mm
Electrical Specifications
Power supply 100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
  Sleep 3 W Off 1 W
Touch Screen Specifications
Touch Technology Project Capacitive Touch Screen 10 Touch Point
Touch Interface USB (Type B)
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Driver Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
  Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
  Storage 10% ~ 90%
MTBF 30000 Hrs at 25°C
https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/
https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/
https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/

Components:

https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/

Applications:

https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/

♦ Casino Slot Machines
♦ Information kiosks
♦ Digital Advertising

♦ Way-finders and Digital Assistants
♦ Medical
♦ Gaming

https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
