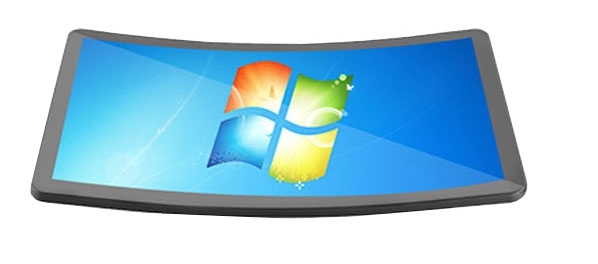

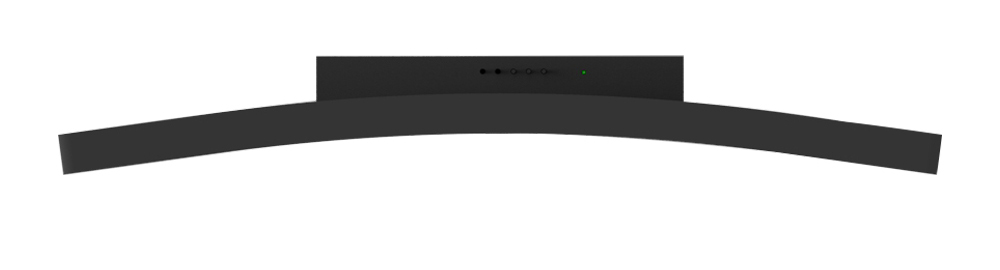

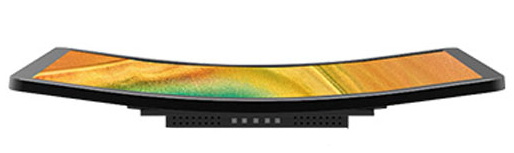

43″ C-Type Curved large touch screen monitors

Short Description:

· Ultra-thin design, novel and beautiful appearance, quick and easy installation

· Wide voltage range, can work normally at AC100~240V, (50/60Hz)

· Capacitive touch/IR touch

· Deeply customize over shell,free for logo,hardware etc.

· Compatible with 3M/ELOs protocol

· Signal input: VGA/VGA/HDMI(Can be customized according to customer requirements)


Product Detail

Product Tags

Specification:

Product name 43 inch curved touch display terminal
Model UD-43WST
LCD panel Active area 963.6(H)×557.9(V)mm
Display ratio 16:9
Backlight LED
Backlight MTBF(hr) Over 50000
Resolution 3840×2160
Luminance 300cd/m2
Contrast 1300:1
Response time 8ms
Dot pitch 0.2451(H)×0.2451(V)mm
Support color 16.7M
Viewing angle Horizontal/Vertical:178°/178°
PCAP

touch screen

Touch technology Projected Capacitive Technology G+G
Response time <5ms
Touch points 10 points touch as standard
Touch effective recognition >1.5mm
Scanning frequency 200HZ
Scanning accuracy 4096 x 4096
Communication mode Full speed USB2.0,USB3.0
Theoretical clicks More than 50 million
Working current/voltage 180Ma/DC+5V+/-5%
Anti-light interference Normal when the strong light of sunlight, incandescent lamp, fluorescent lamp etc. changes
Touch data output method Coordinate output
Surface hardness Physically toughened, Mohs grade 7 explosion-proof glass
Operating system Android/Windows
Driver Drive free, plug and play
Other interface HDMI1.4 Input 1PCS
HDMI2.0 Input 1PCS
Touch USB 1PCS
Headphone output 1PCS
AC 1PCS
Power supply Working voltage AC220V  50/60Hz
Max power dissipation 135W
Power consumption 0.8W
Environment Temperature 0~40 degrees Celsius
Humidity 10~90%RH

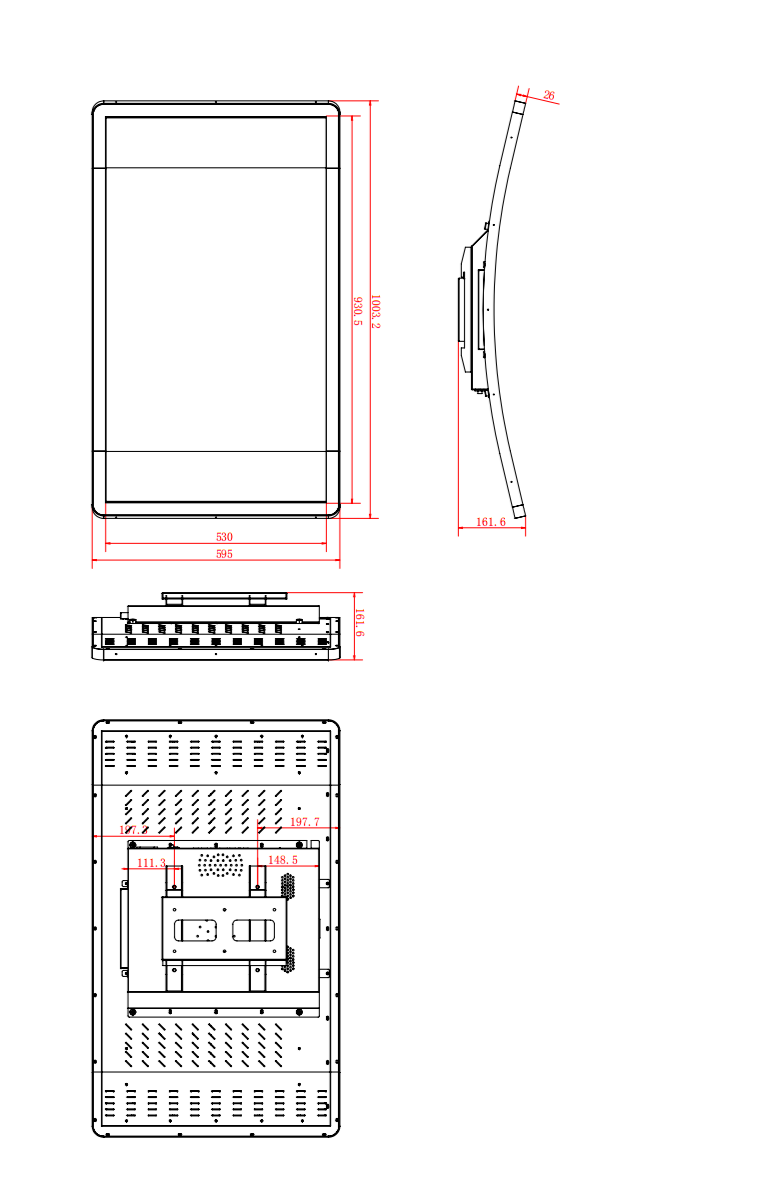

Other Product size 1003.2*595*161.6mm
Package size 1100*705*245mm
Net weight 23.95KG
Gross weight 26.8KG
Accessory Power cable*1, HDMI*1,USB cable*1,Remote*1
https://www.cjtouch.com/43-c-type-curved-large-touch-screen-monithttps://www.cjtouch.com/43-c-type-curved-large-touch-screen-monitors-product/ors-product/
https://www.cjtouch.com/43-c-type-curved-large-touch-screen-monitors-product/
https://www.cjtouch.com/43-c-type-curved-large-touch-screen-monitors-product/

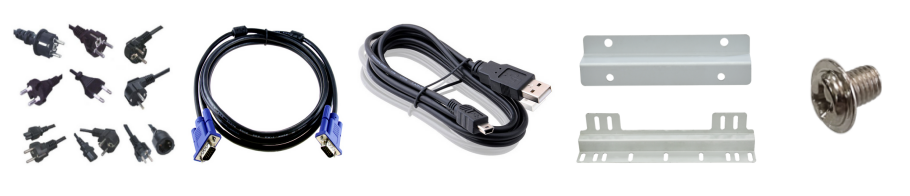

Components:

https://www.cjtouch.com/43-c-type-curved-large-touch-screen-monitors-product/

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/43-4k-back-side-led-light-touch-screen-monitor-product/

Applications:

https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/

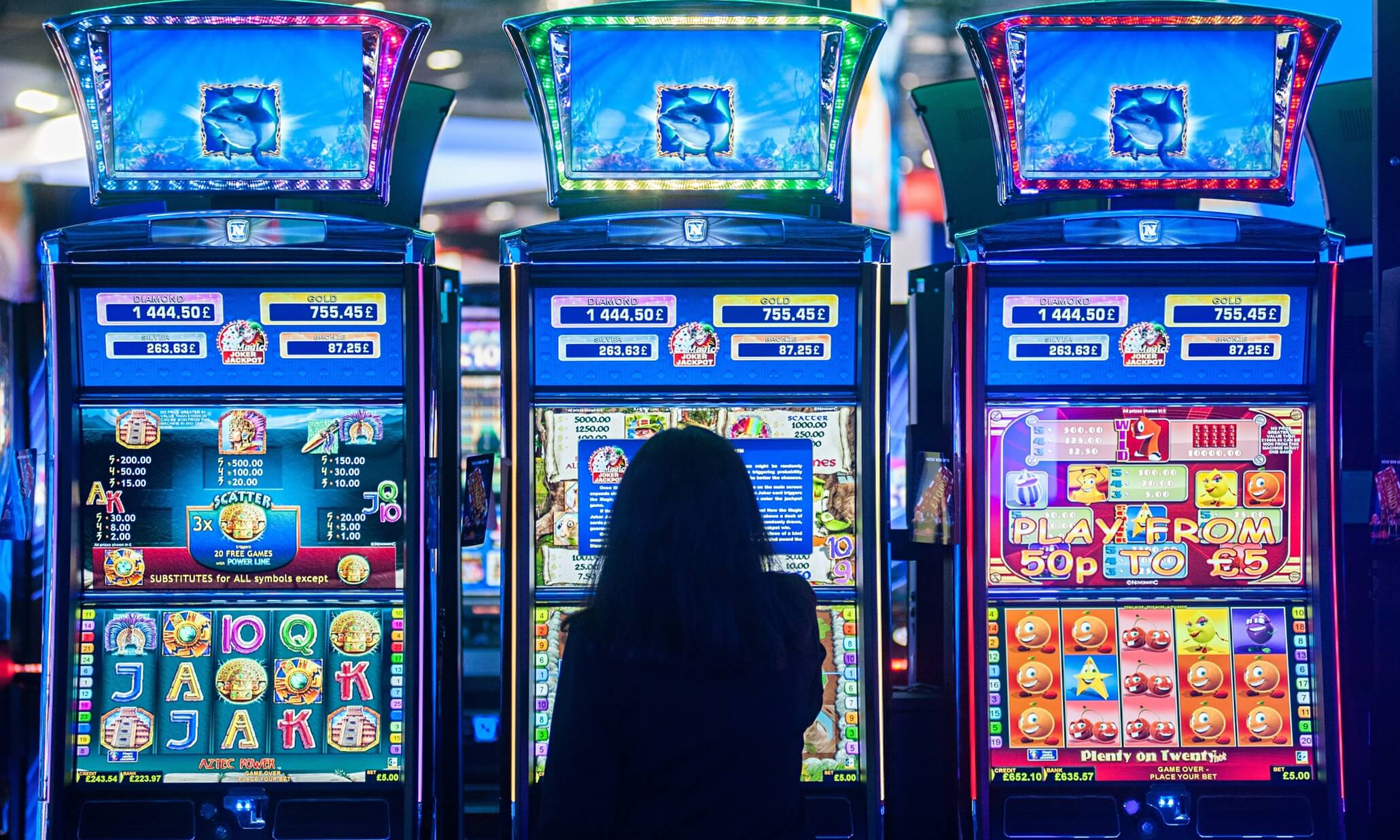

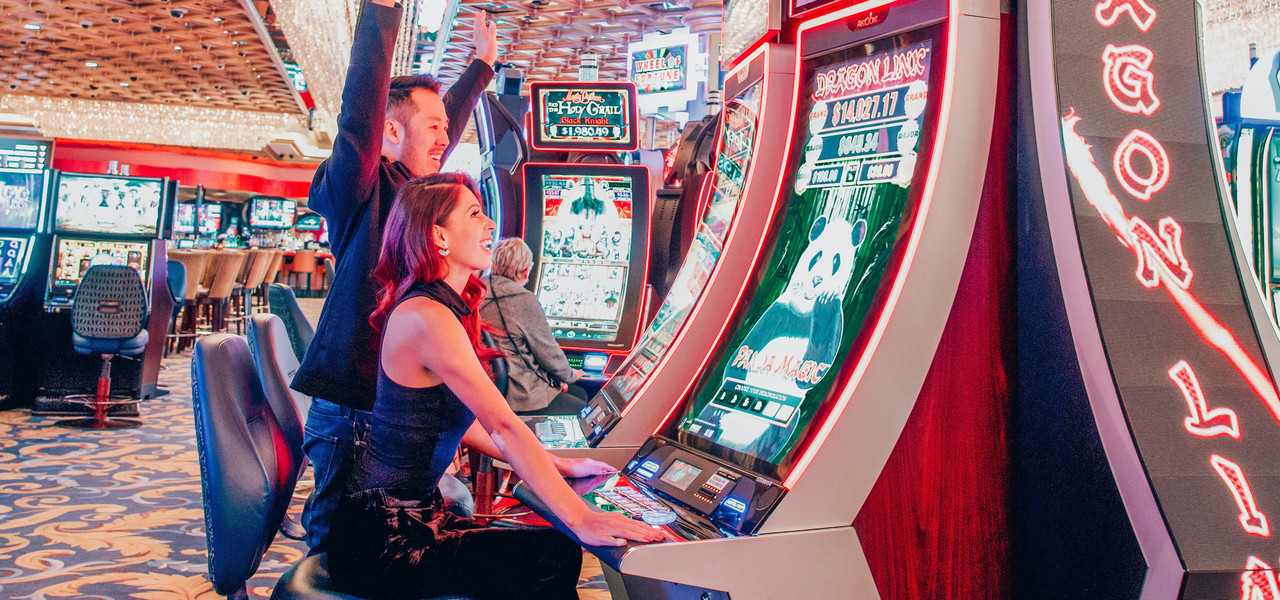

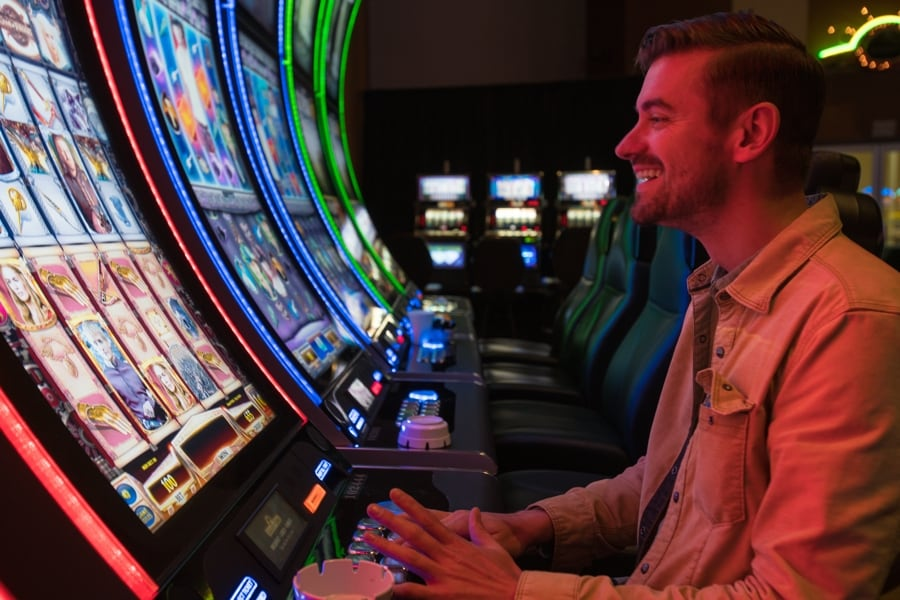

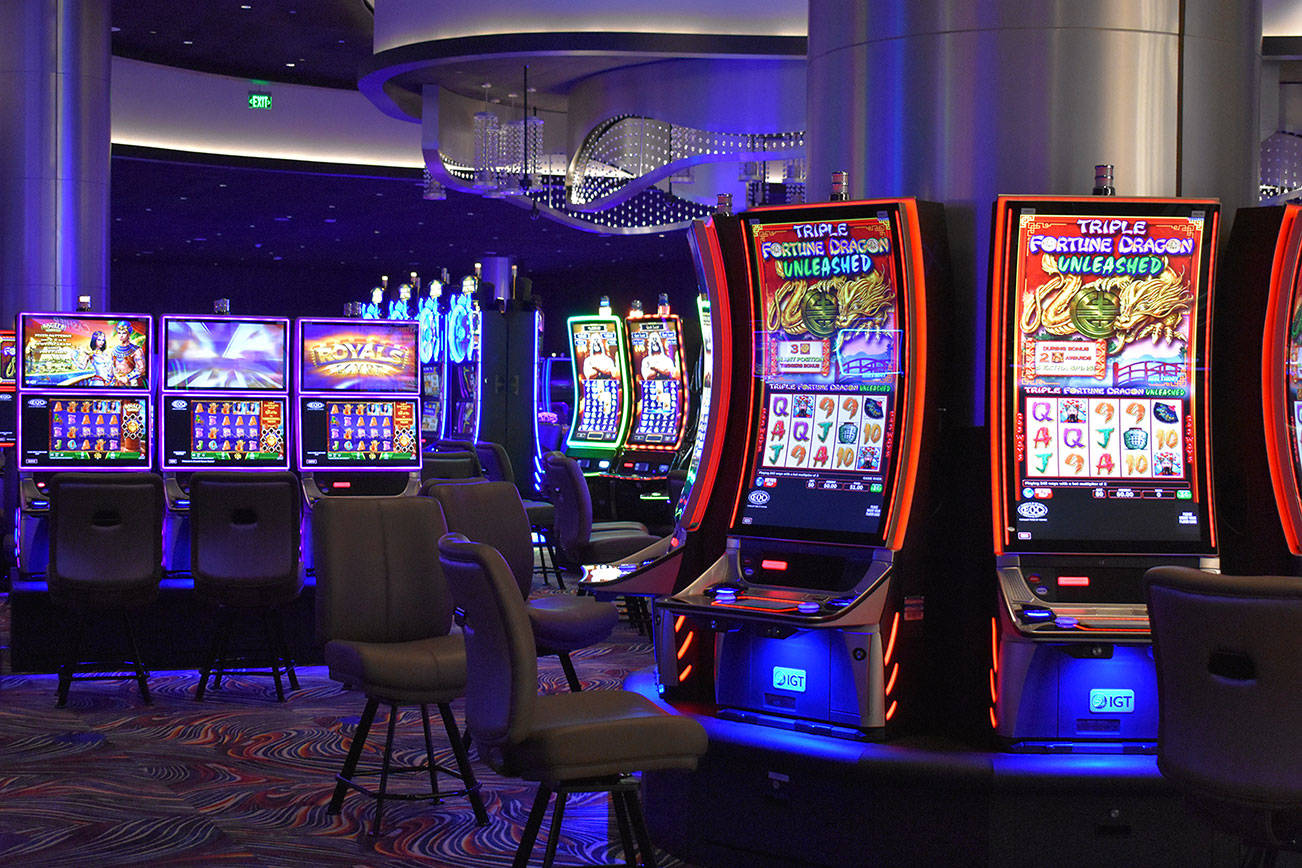

♦ Casino Slot Machines
♦ Information kiosks
♦ Digital Advertising

♦ Way-finders and Digital Assistants
♦ Medical
♦ Gaming

https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
https://www.cjtouch.com/43-j-type-curved-touch-screen-pc-monitor-with-led-lighting-product/
