8 inch PCAP touch screen monitor
Specification:
| General | |
| Model | COT080-CFF02 |
| Series | Flat Screen Frameless waterproof |

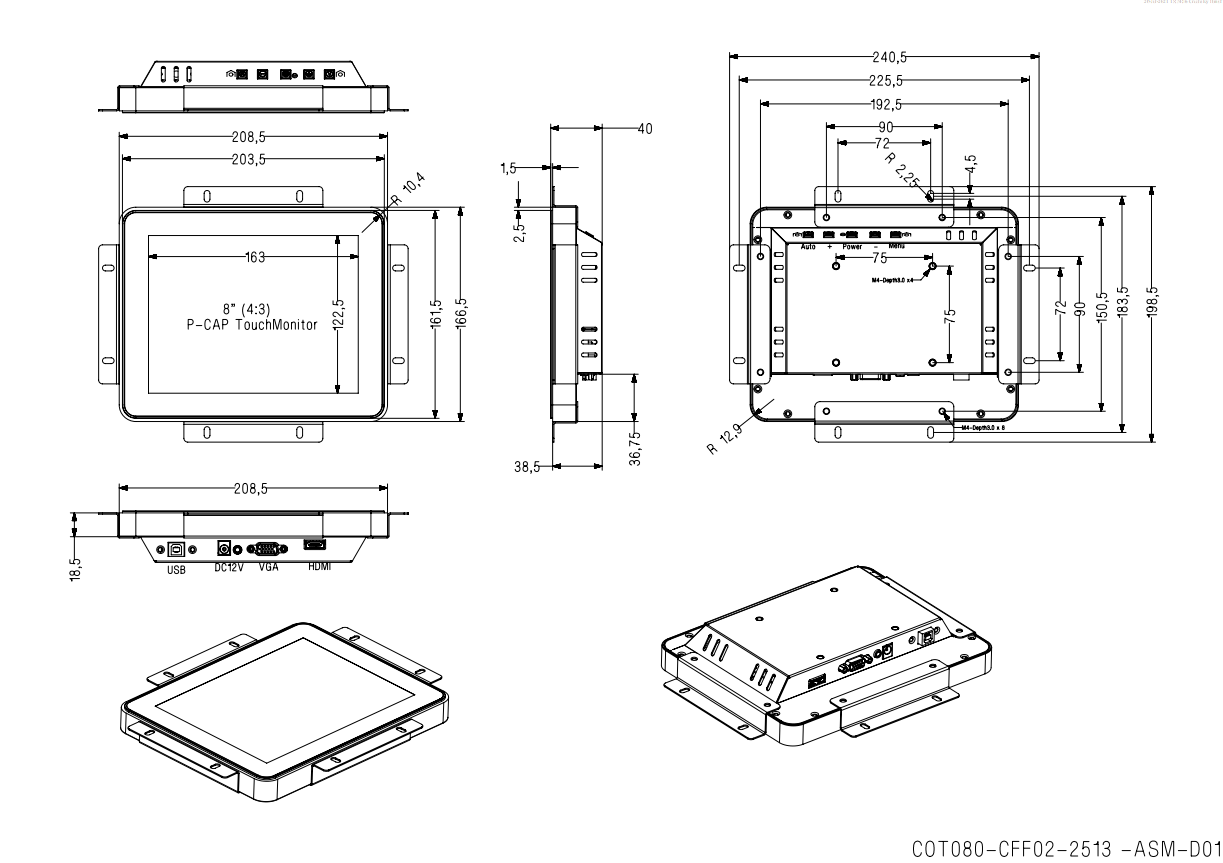

| Monitor Dimensions | Width: 208.5mm Height: 166.5mm Depth: 40mm |
| LCD Type | 8” Active matrix TFT-LCD |

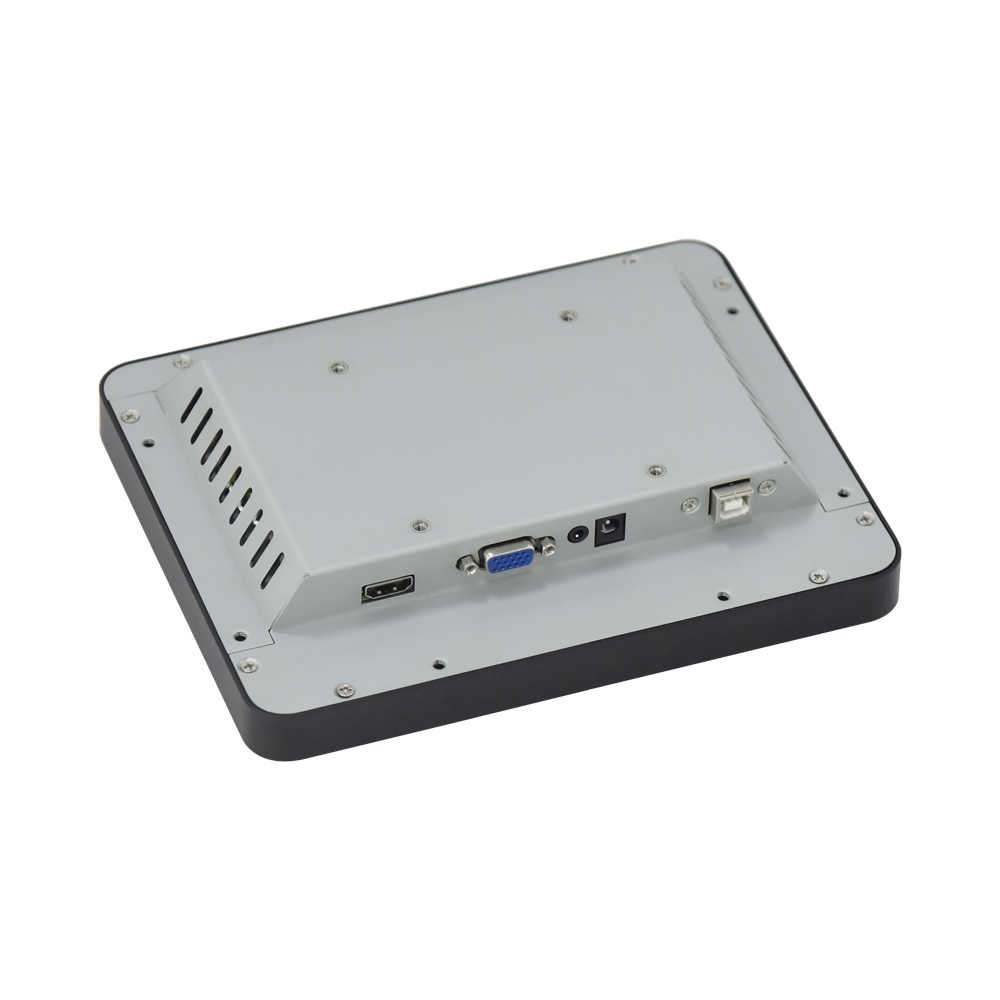

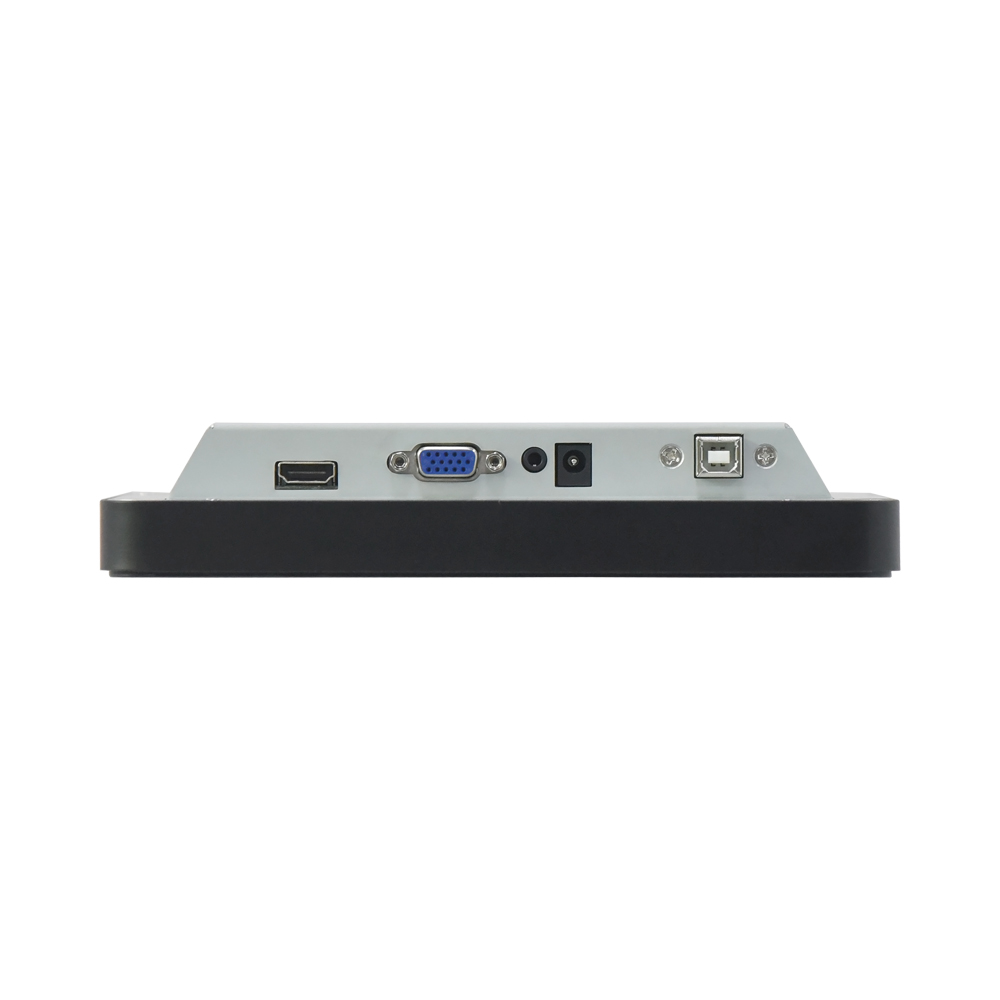

| Video Input | VGA and HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 162.048(W) × 121.536(H) mm |
| Resolution | 1024×768 @60Hz |
| Dot Pitch(mm) | 0.15825×0.15825 mm |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right) |
| Contrast | 700:1 |
| Luminance(cd/m2) | 400 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M Colors |
| Backlight MTBF(hr) | Min 20000 hrs |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 5points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH | 20%～80% |
| Storage RH | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
