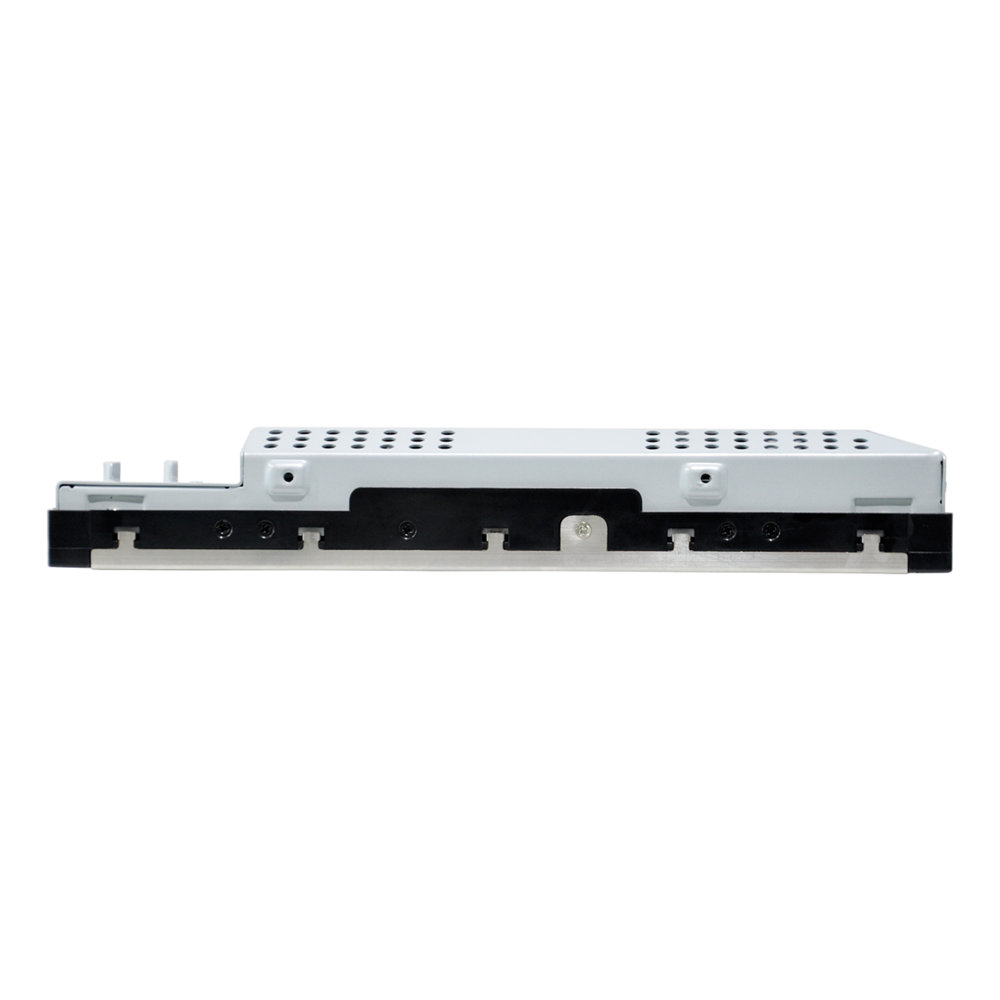

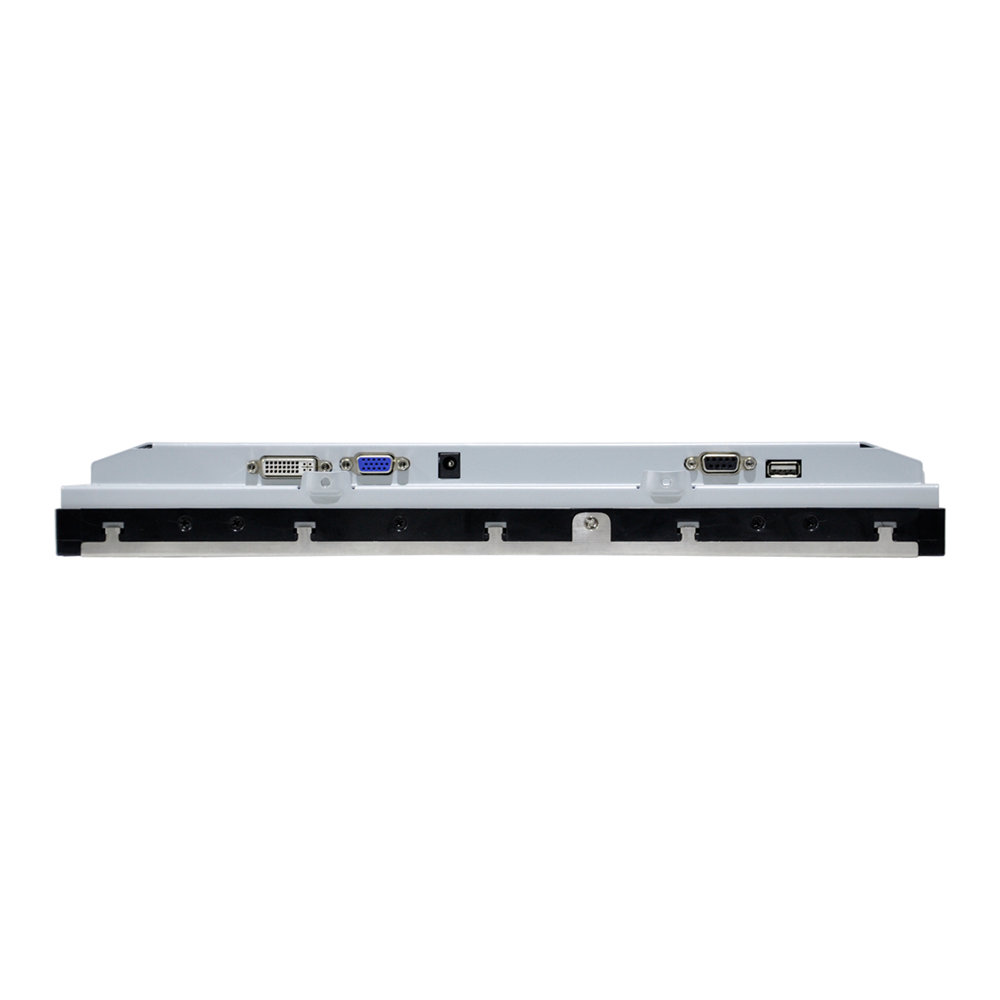

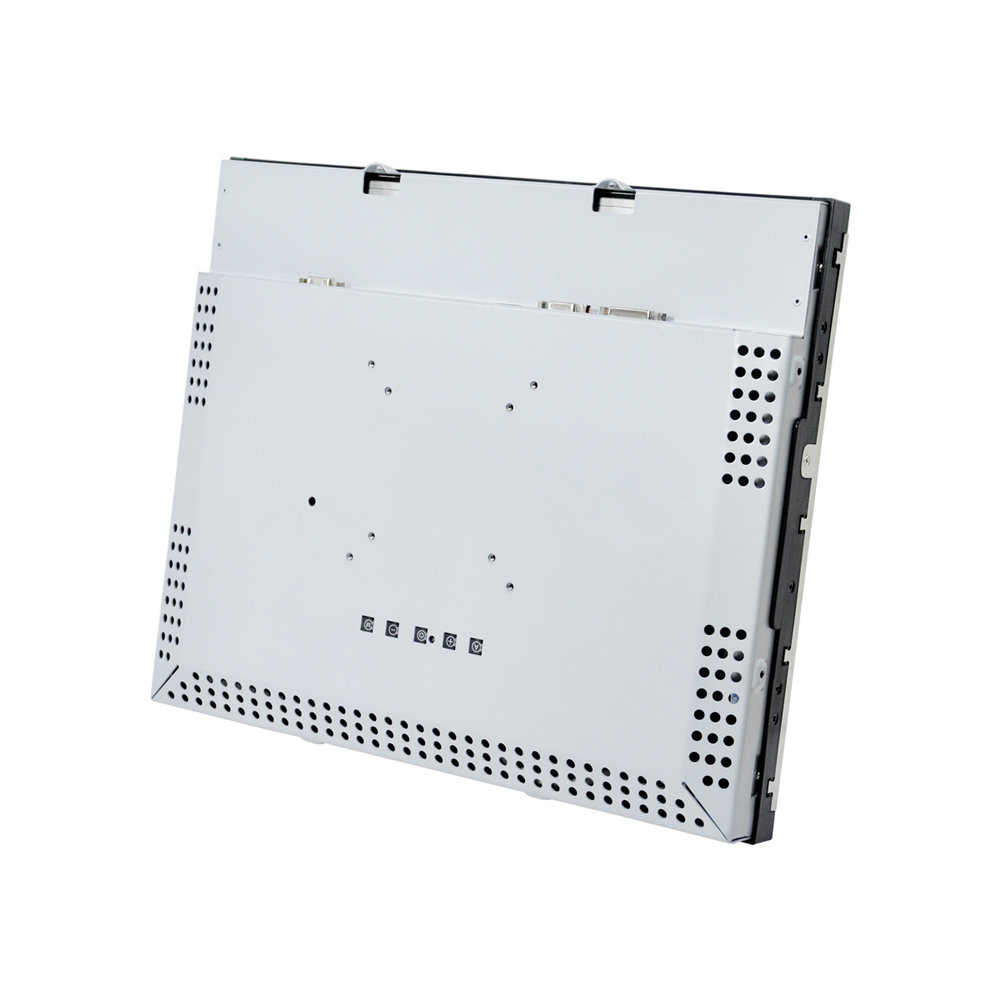

Open Frame 17 inch Surface Acoustic Wave Industrial Saw Touchscreen Monitor compatible to ELO Lcd Metal Touch Monitor For Kiosk

Suggested Resolution

1280×1024

Support Colors

16.7M

Brightness(Typ.)

Pure LCD Panel

250cd/m2

With SAW Glass Sensor

225cd/m2

Response Time(Typ.)

5ms

Viewing Angle

(Typ.at CR>10))

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio(Typ.)

800:1

Video Input

Dual Analog RGB and DVI video format

Frequency(H/V)

30~80KHz / 60~75Hz

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Environment

Operating Temp.

0~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%

MTBF

50,000 Hours

LCD Back light Life(Typ.)

50,000 Hours
