SAW/IR/Capacitive Touch screen with Customization
17 inch PCAP Touch Monitor specification :
| Sensor Customization | |
| P-Cap Film Sensor | Active Area Size up to 65”, Thickness: ≥ 0.4mm |
| P-Cap Glass Sensor | Active Area Size up to 65”, Thickness:0.7mm or 1.1mm |
| SAW Glass Sensor | Active Area Size up to 55”, Thickness: 2.5 to 12mm |
| IR Sensor | Active Area Size up to 115”, Thickness: 2.8 to 12mm |
| FPC Tail | Width x Length x Orientation |
| Sensor Border | Minimum to 5mm Surround Sensor from 7” to 65” |

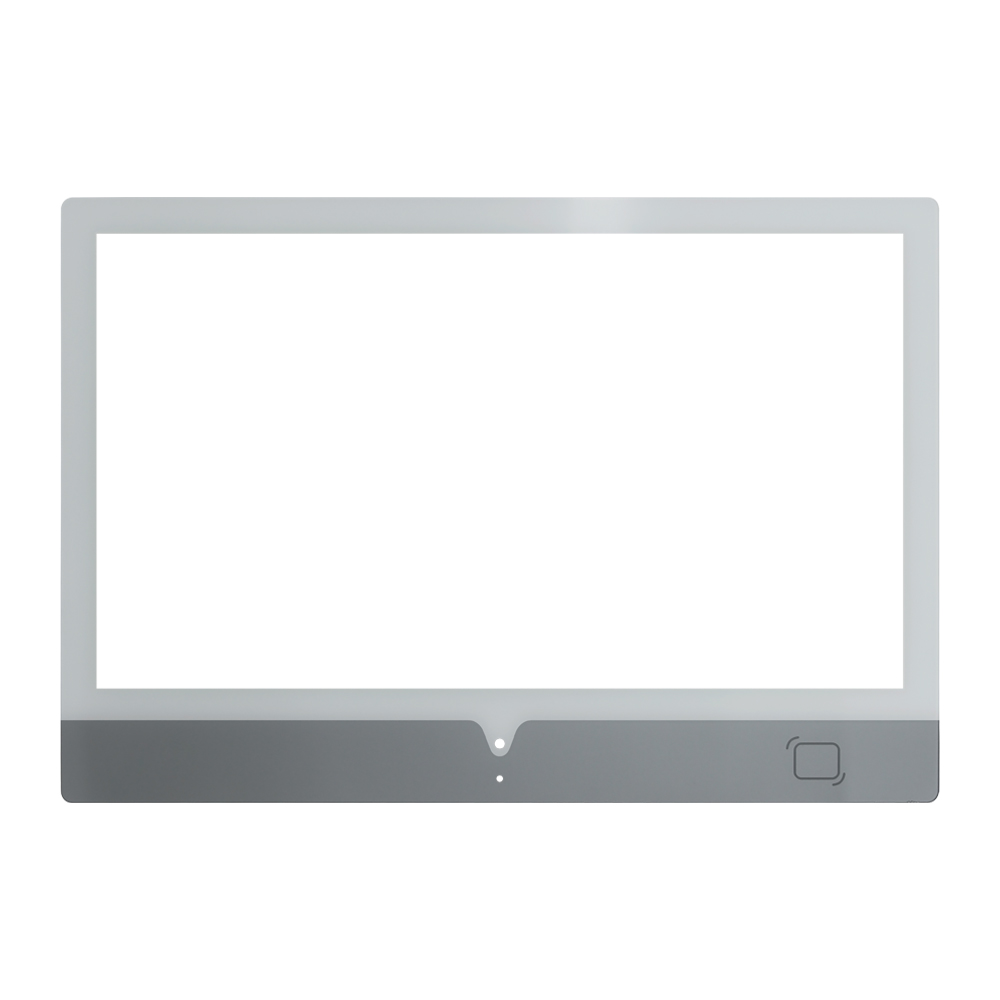

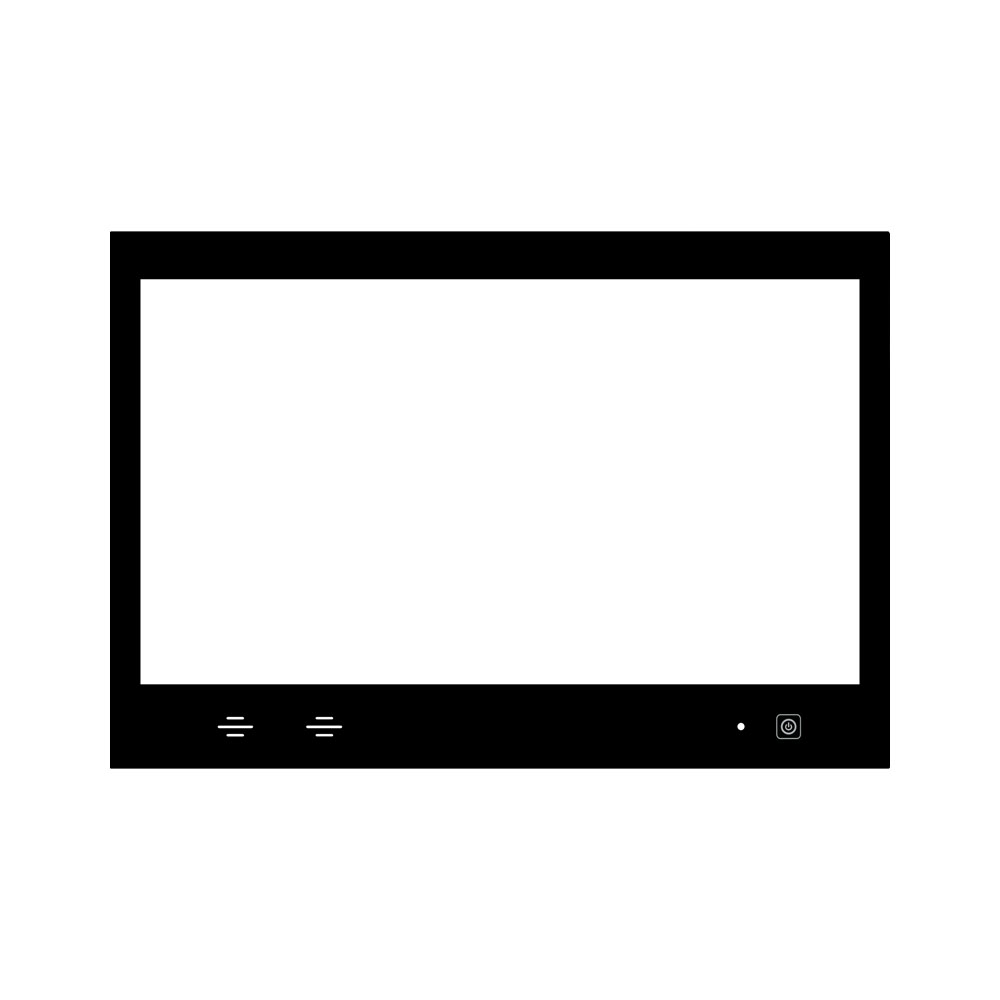

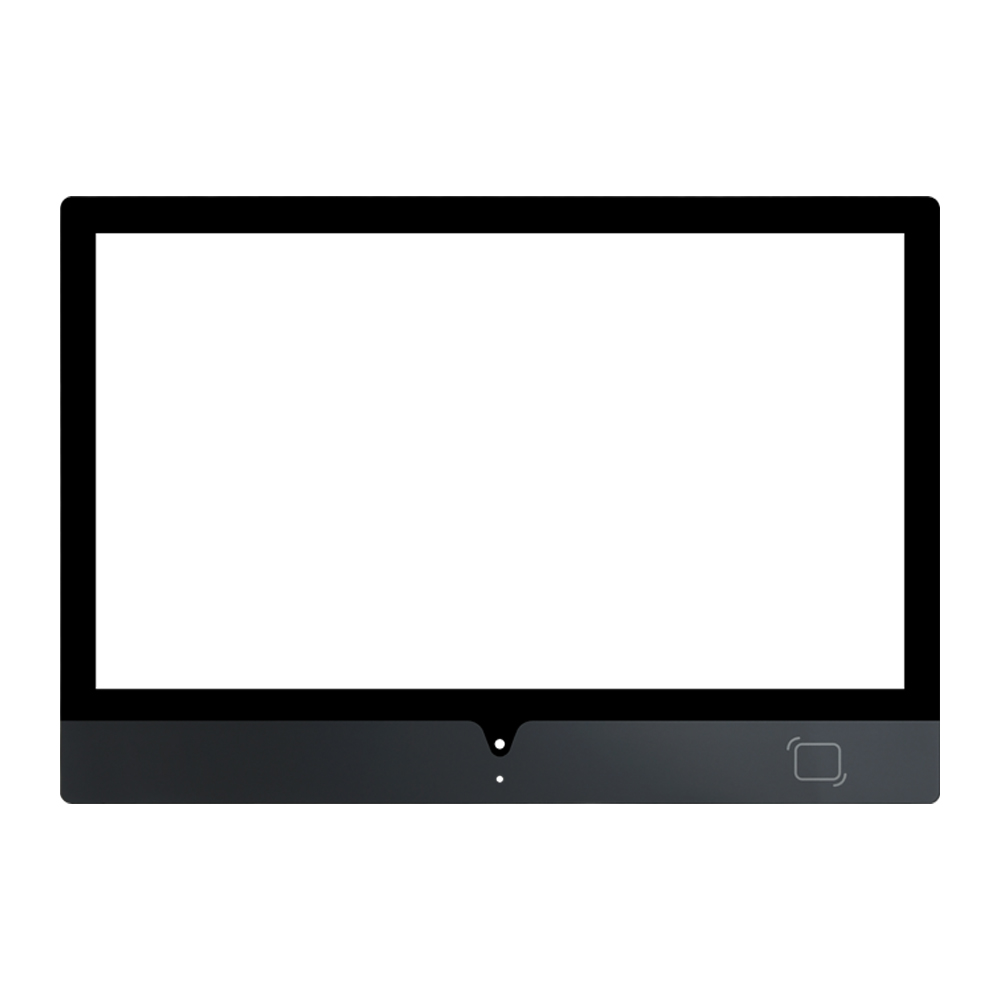

| Cover Lens Option | |
| Cover Material | Plastic, Glass or Hardness film |
| Cover glass strengthen | Tempered, Chemically Strengthen up to 20J (IK10 ) |
| Shape | Width, Length, Border Color, Logos, Camera Hole or Microphone Hole |
| Edge Treatment | Different Type of Edge, Such as C or Round |
| Lens Thickness | 0.3, 0.7, 1.1, 2.0, 3.0, 4.0, 6.0 or 12mm |
| Surface Treatments | Clear, AG, AR, AF, Mirror or Anti-microbial |
| Screen Ratio (for SAW) | 1:1 to 10:1 |
| Waterproof (for SAW) | IP64, IP65 |
| Controller & Driver | |
| Firmware | PID/VID Modification, Firmware in-house Debug |
| Communication Interface | USB, I2 C or RS232 |
| Tuning skill | Custom |
| Chip | Chip On Board , Chip On FPC |
| Driver | Windows, Android, Linux, Chrome OS |
| Touch Active Force (for SAW) | 30g to 120g |
| Touch Point | 1 to 80 |
| Compatible | 3M / Elo |
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
Company Profile
CJTOUCH heavily invests in R&D so as to produce touchscreens with broad range of sizes (7” to 86”), for wide range of applications and for long periods of utilization. With a focus on delighting both customers and users, CJTOUCH’s Pcap/ SAW/ IR touchscreens have garnered loyal and prolonged support from international brands.
