Waterproof Full Flat Screen 23.8 Inch 1080P Industrial Capacitive Pcap Touch Screen Monitor

Short Description:

  • Products Status:Stock
  • Screen Size:23.8″
  • Type:Capacitive
  • Interface Type:D-SUB, DVI, Serial, usb
  • Resolution:1920*1080@60Hz
  • Brand Name:CJTouch
  • Place of Origin:Guangdong, China
  • Multi-touch:Available
  • LCD Type:23.8″Active matrix TFT-LCD
  • Series:OT,Water-proof and Flat

Product Detail

Product Tags

23.8 inch PCAP Touch Monitor specification :

General
Model COT238-CFK03
Series Water-proof and Flat
Monitor Dimensions Width: 549.2mm  Height: 341.1mm  Depth: 43.4mm
Weight(N.W/G.W) 5Kg / 12Kg (Approx.)
LCD Type 23.8”SXGA Color TFT-LCD
Video Input VGA HDMI and DVI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

LCD Specification
Active Area(mm) 527.04(H)×296.46(V)
Resolution 1920x1080@60Hz
Dot Pitch(mm) 0.24825×0.24825
Nominal Input Voltage VDD +5.0V(Typ)
Viewing angle (v/h) 89°/89°
Contrast 1000:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 5s/5s
Support Color 16.7M colors
Backlight MTBF(hr) 30000
Touchscreen Specification
Type Cjtouch project capacitive touch screen
Resolution 4096*4096
Light Transmission 92%
Multi touch 10 points touch
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0~50°C
Storage Temp. -20~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%

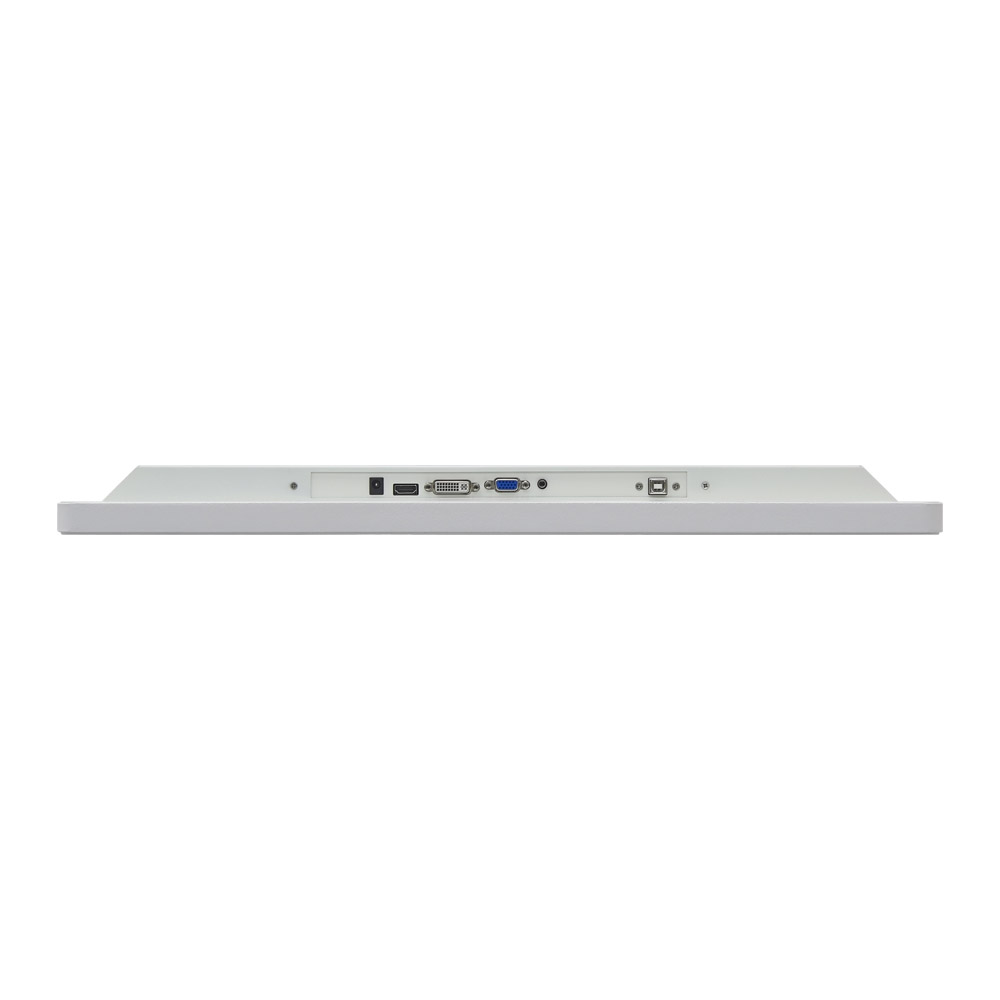

CJtouch monitor interface
touch monitor

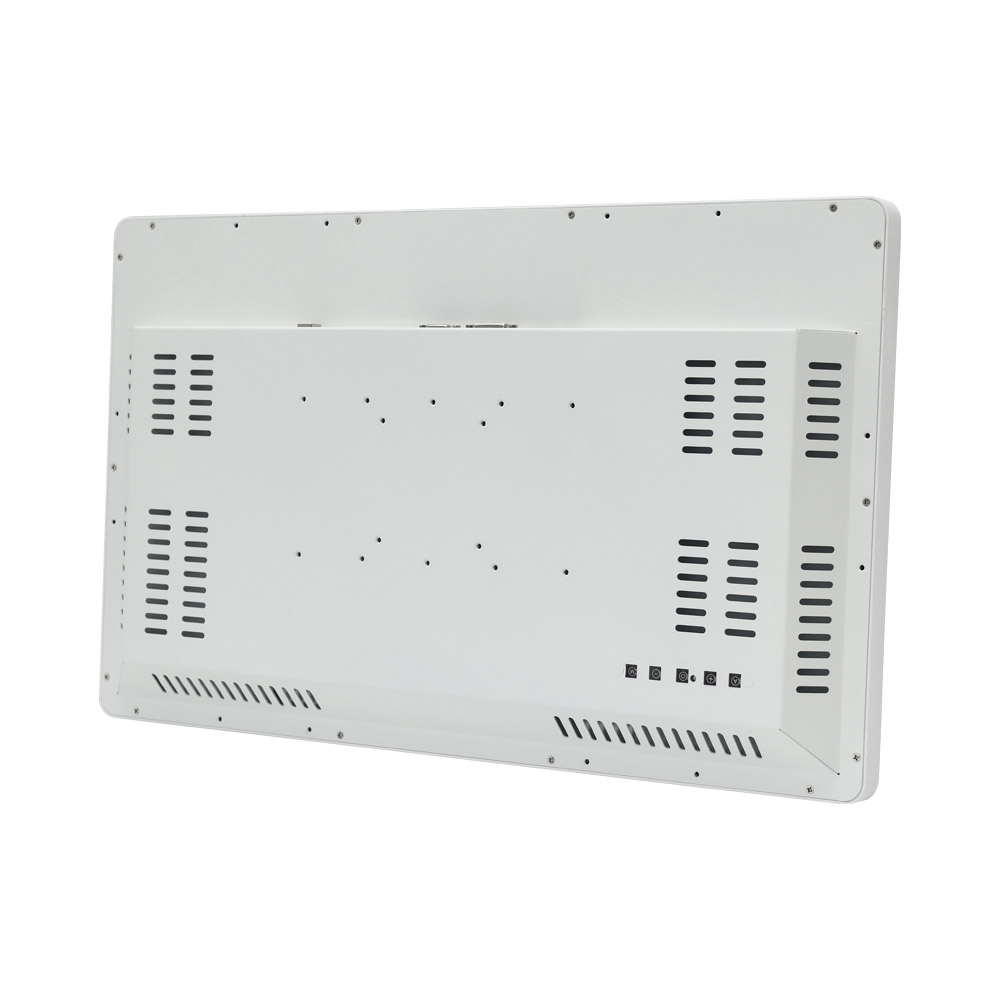

Capacitive touch screen back

Production process:

Production process

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Company Profile

Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
